Figure 1
From: Opto-electrical bimodal recording of neural activity in awake head-restrained mice

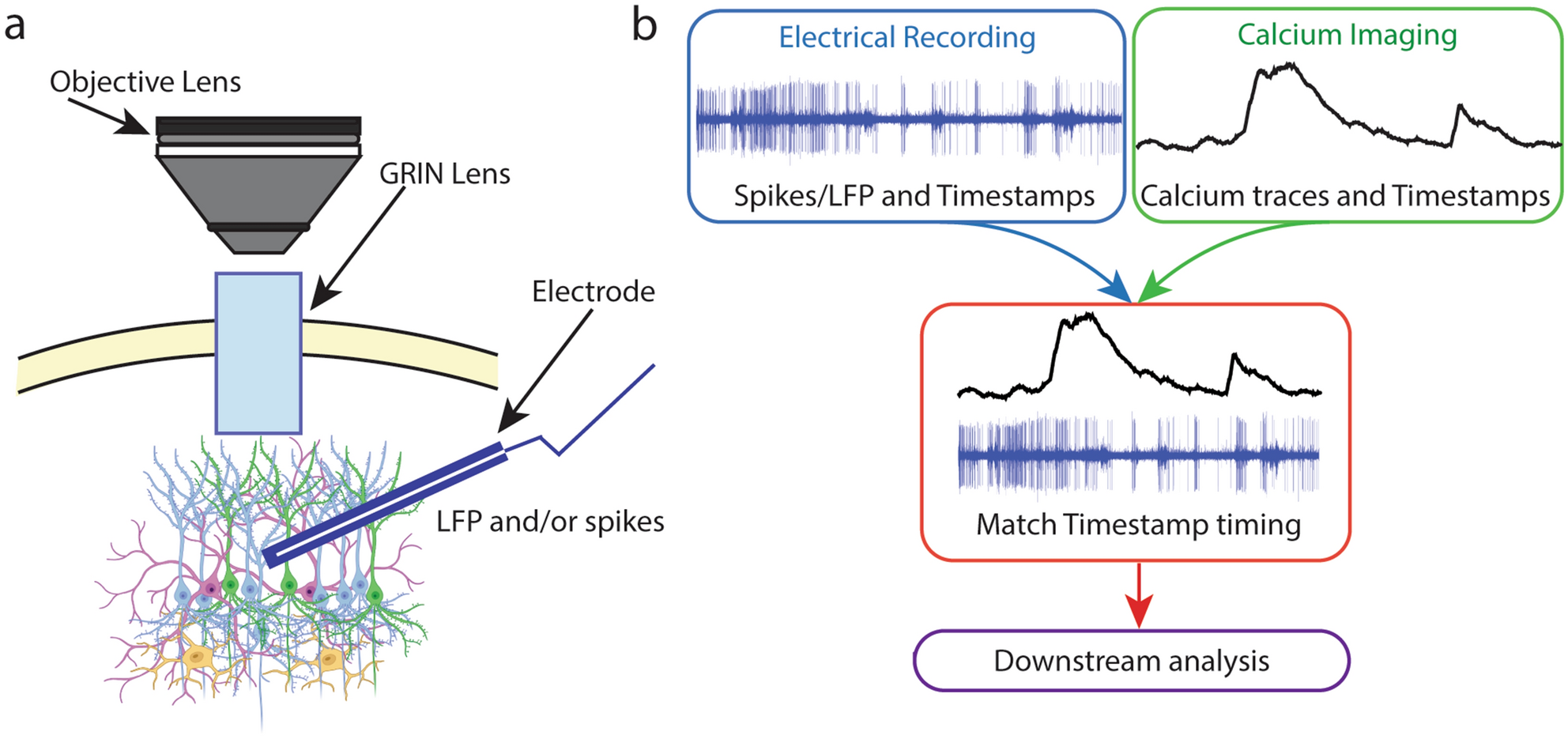

Opto-electrical bimodal recording. (a) Schematic of our experimental approach of opto-electrical bimodal recording. (b) A flow chart of processing bimodal recording data for downstream analysis.
