Figure 2

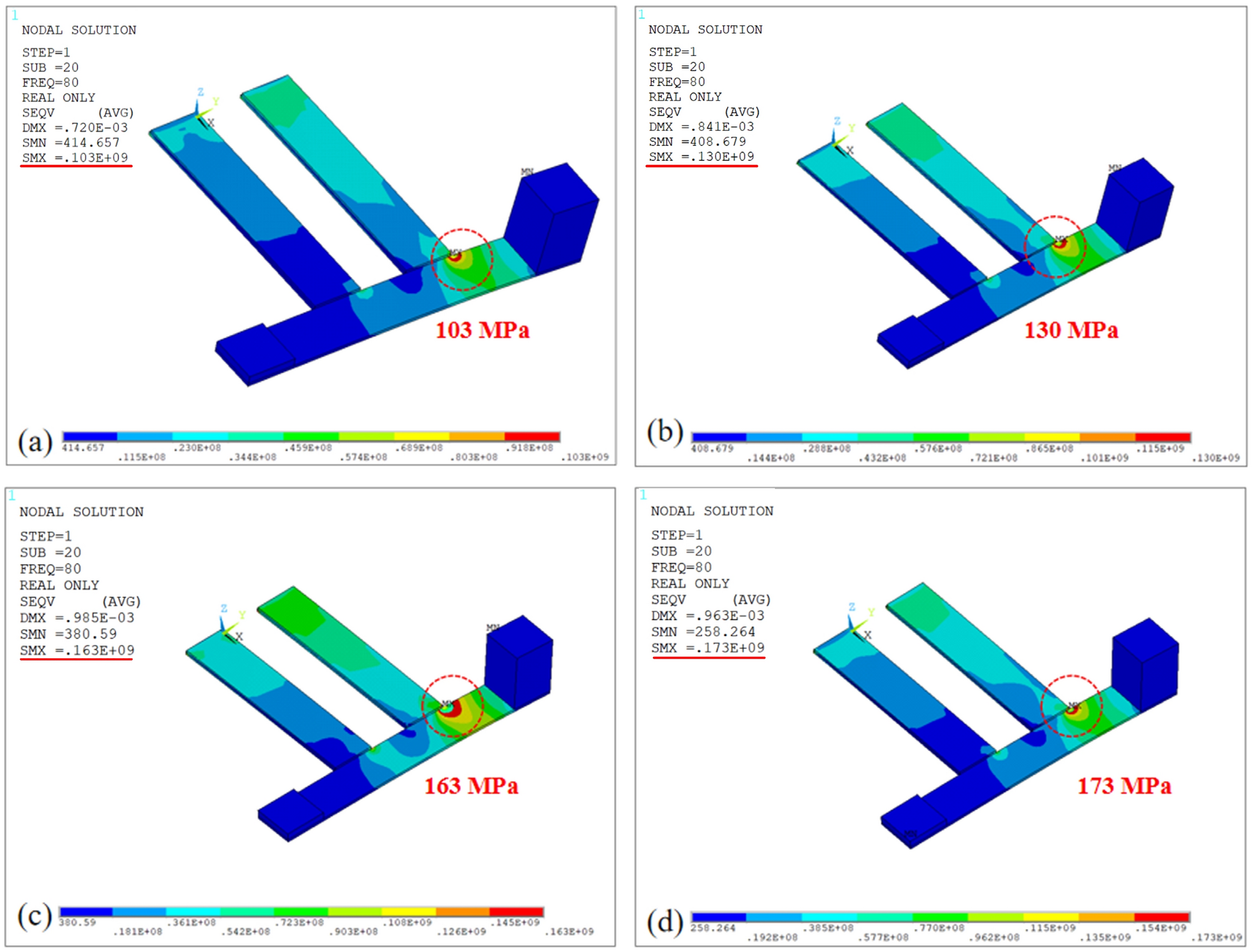

The modal stress diagrams of convergent judge at the mesh densities for PEHDCB (a) 0.7, (b) 0.6, (c) 0.5 and (d) 0.4 mm.
Figure 2 | Scientific Reports
The modal stress diagrams of convergent judge at the mesh densities for PEHDCB (a) 0.7, (b) 0.6, (c) 0.5 and (d) 0.4 mm.
