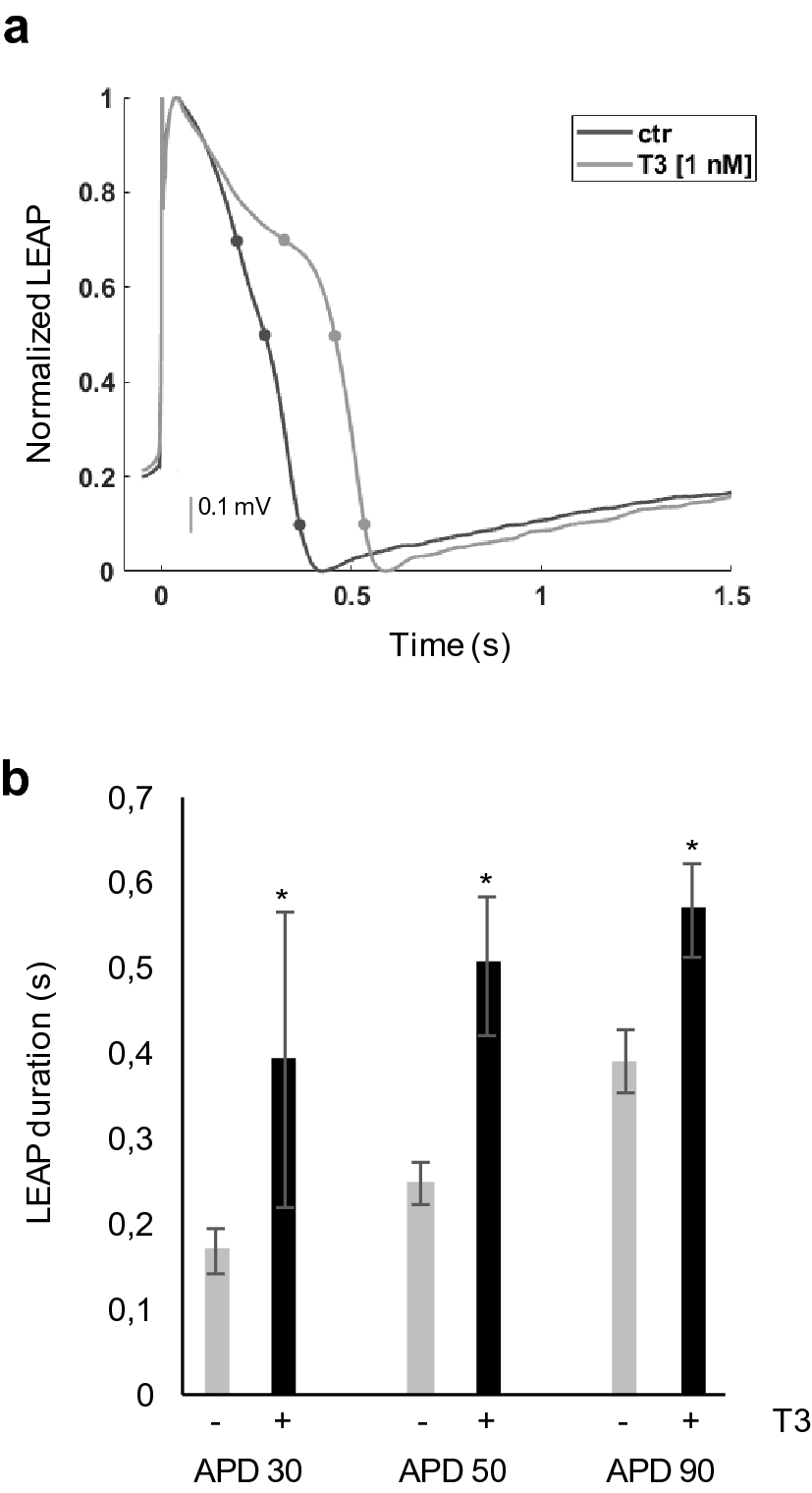

LEAP analysis of hiPSC-CM treated with T3. (a) Local extracellular APD analysis of iPSC-CM treated for 24 h with T3 1 nM. The amplitude normalized LEAP waveforms (averaged across 5 beats) from representative wells are overlaid for the vehicle control (grey) and the T3 1 nM (black) treated cardiomyocytes. (b) The histogram represents the mean ± standard deviation of APD30, 50, and 90 measured in four wells. *p < 0.05.
