Figure 3
From: Microscale drivers of summer CO2 fluxes in the Svalbard High Arctic tundra

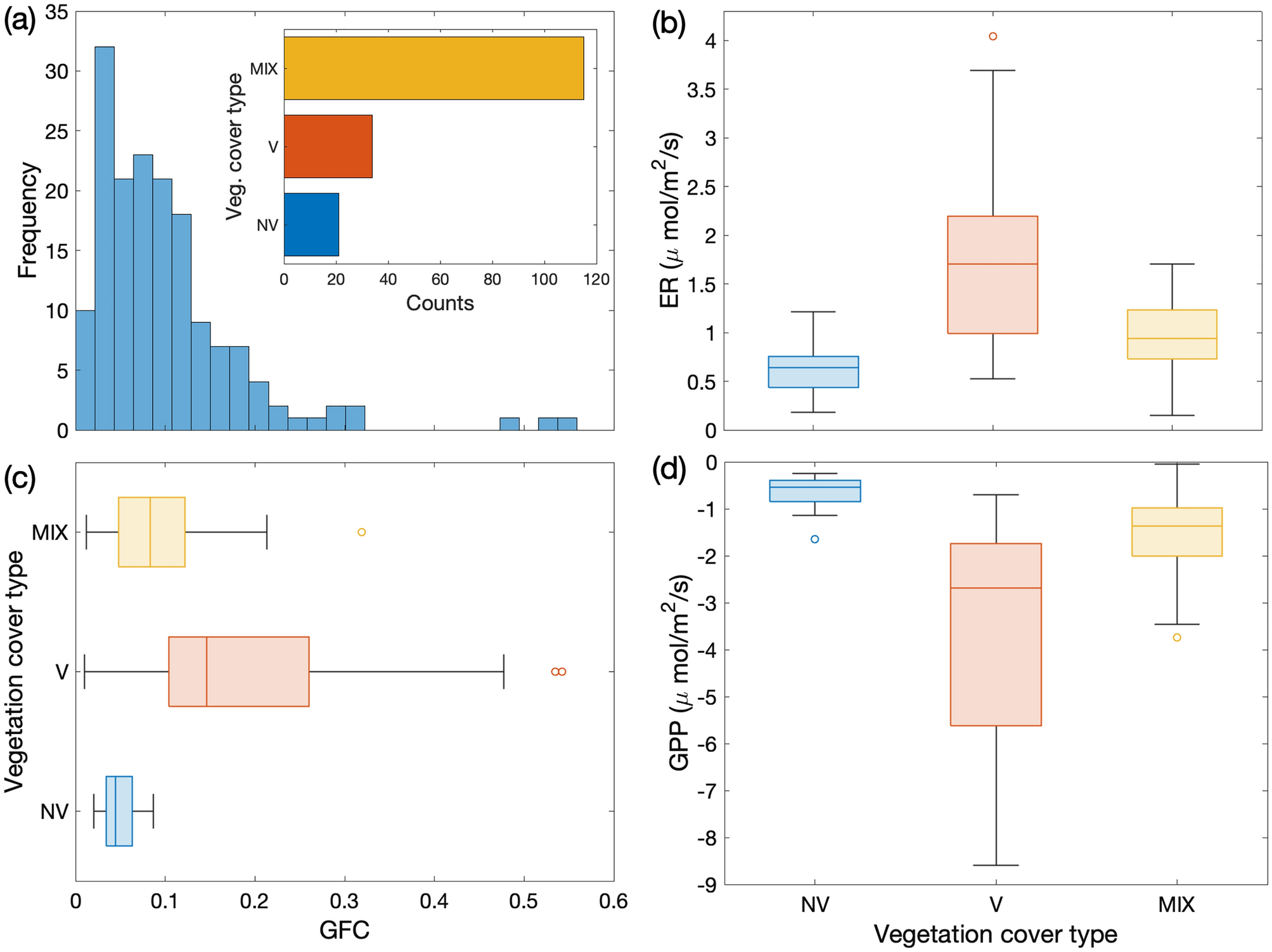

(a) Frequency of the Green Fractional Cover, GFC, in site-scale samplings including all types of vegetation cover. Inset: Number of points of the different vegetation types in site-scale samplings: (V) vascular species; (NV) non-vascular species; (MIX) mix of vascular and non-vascular species. Box plots of (b) Ecosystem Respiration, ER, (c) GFC and (d) Gross Primary Production, GPP, for V, NV and MIX vegetation classes. Box plots display the median (line), the lower and upper quartiles (box), outliers computed using the interquartile range (points) and the minimum and maximum values that are not outliers (bars).
