Figure 8

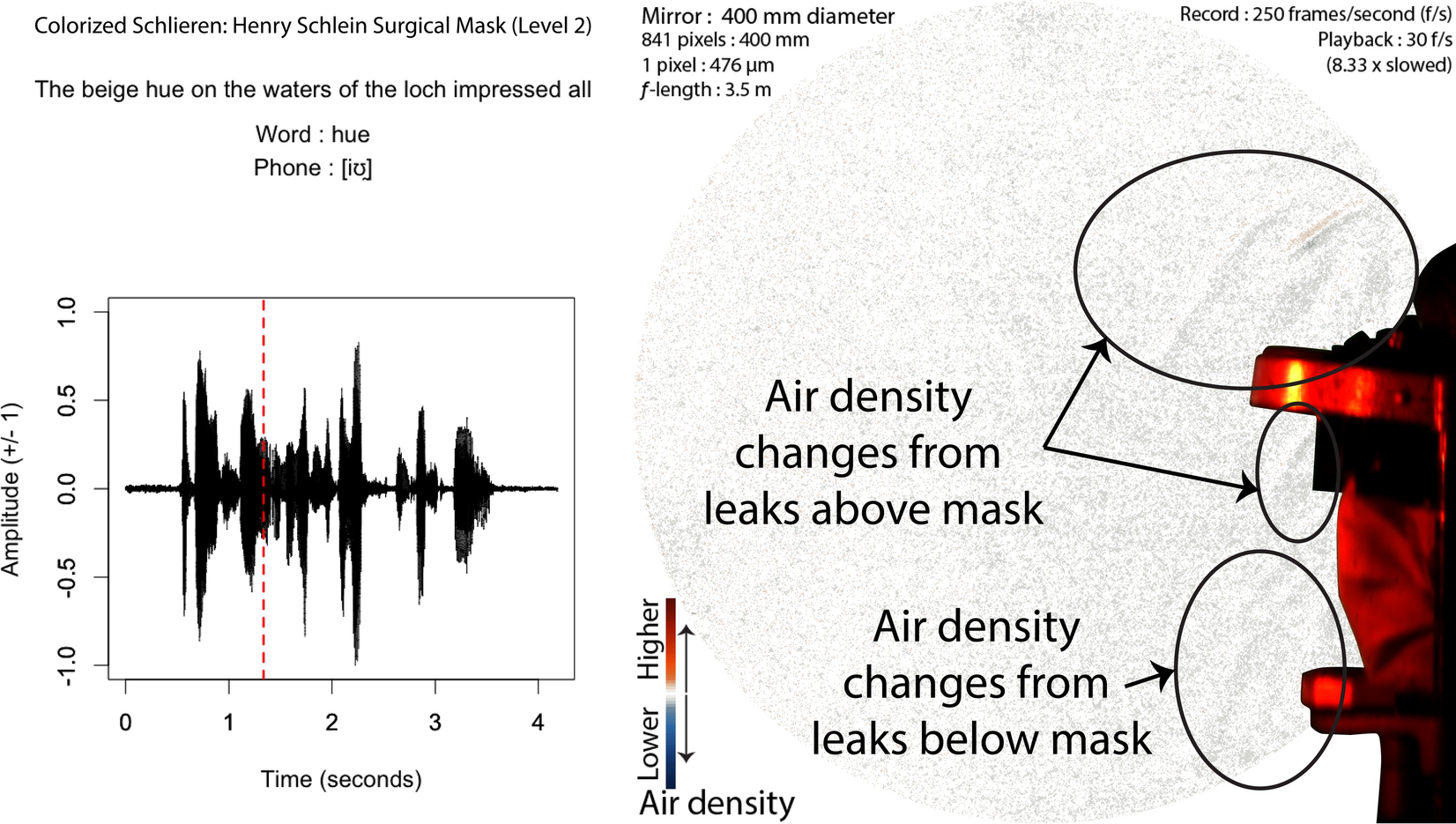

Audio and Schlieren of speech with a tightly fitting surgical mask (Frame 334, 1st block, Henry Schlein surgical mask [level 2]). Air slowly flows out above the eyes, floating out and upward continuously. The red-dashed line in the audio waveform indicates the timing of the schlieren frame.
