Figure 8
From: Roles of the semisolid heating on the microstructure of a hypereutectic Al–Fe–Cu alloy

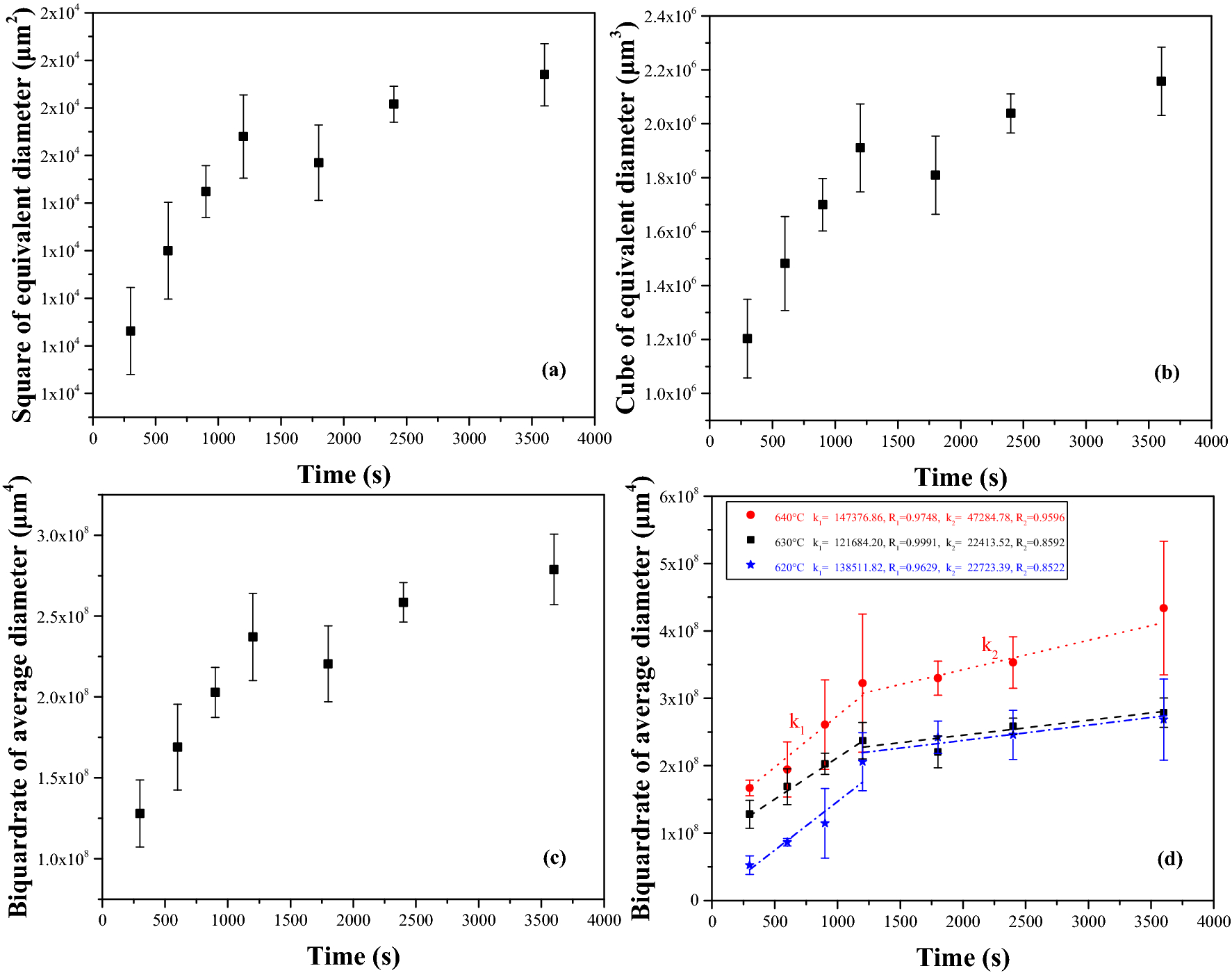

Plot of mean grain size (a) squared, (b) cubed and (c) quadruplicated as a function of holding time for Al–Fe–Cu alloy reheated at 630 °C, (d) relationship between quartic power of equivalent diameter and holding time for the alloy in various temperatures, lines represent the best linear fitted to the data. R is Pearson’s coefficient.
