Figure 9
From: Roles of the semisolid heating on the microstructure of a hypereutectic Al–Fe–Cu alloy

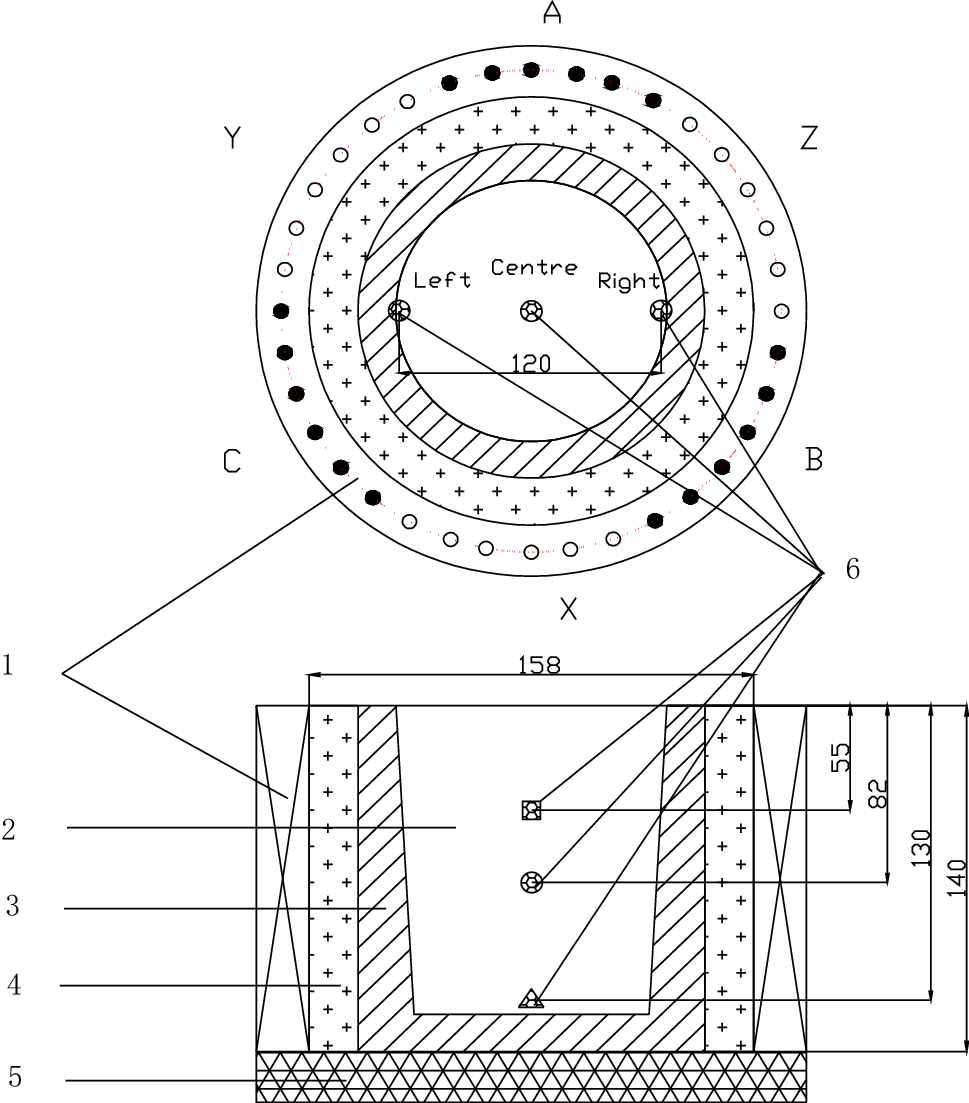

Schematic diagram of one of the home-made electromagnetic stirring apparatus29 (1) electromagnetic coils, (2) the melt; (3) graphite mold; (4) thermal insulation materials; (5) thermal insulation subplate; (6) measuring positions of the magnetic flux density.
