Figure 3

From: Investigating the network consequences of focal brain lesions through comparisons of real and simulated lesions

Figure 3

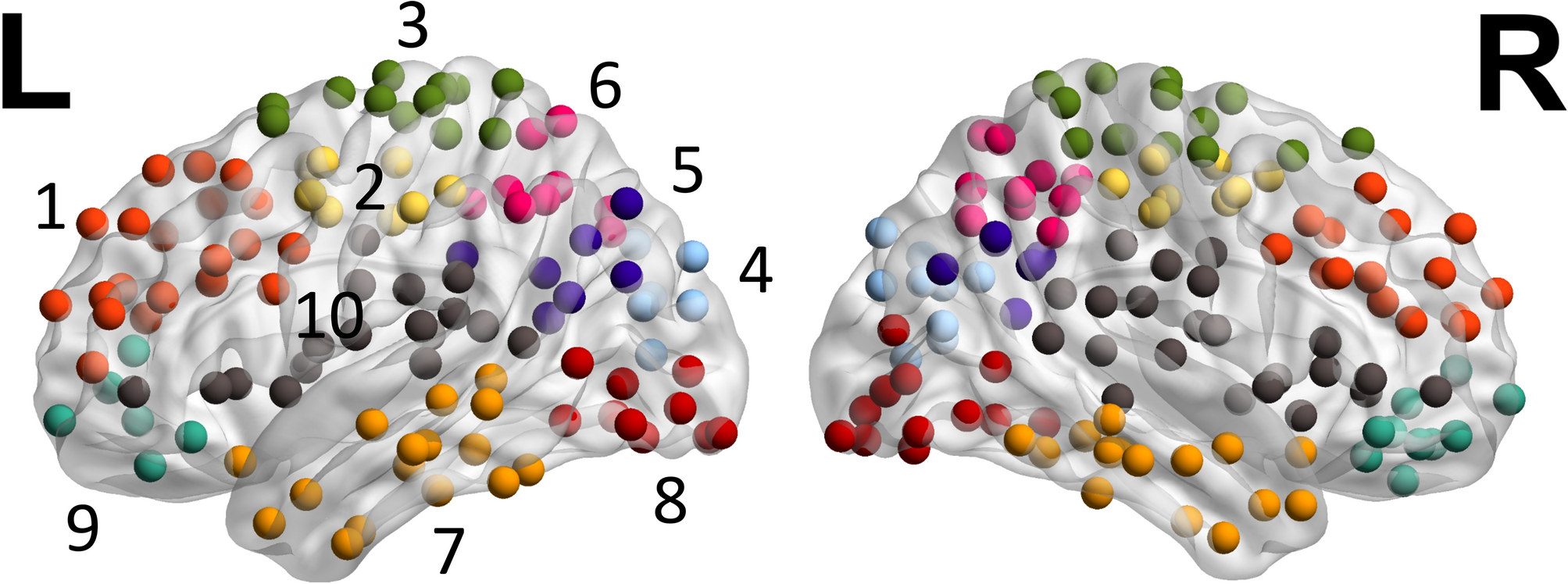

The reference modular organization. Using the Healthy Control Group connectomes (HC, N = 10), a 10-cluster clustering solution was calculated via hierarchical clustering analysis. The color-coding scheme and the neuroanatomical labels of each cluster are described in “Identifying the reference modular organization”. The figure was generated with BrainNet Viewer.
