Figure 10
From: In-SEM micro-machining reveals the origins of the size effect in the cutting energy

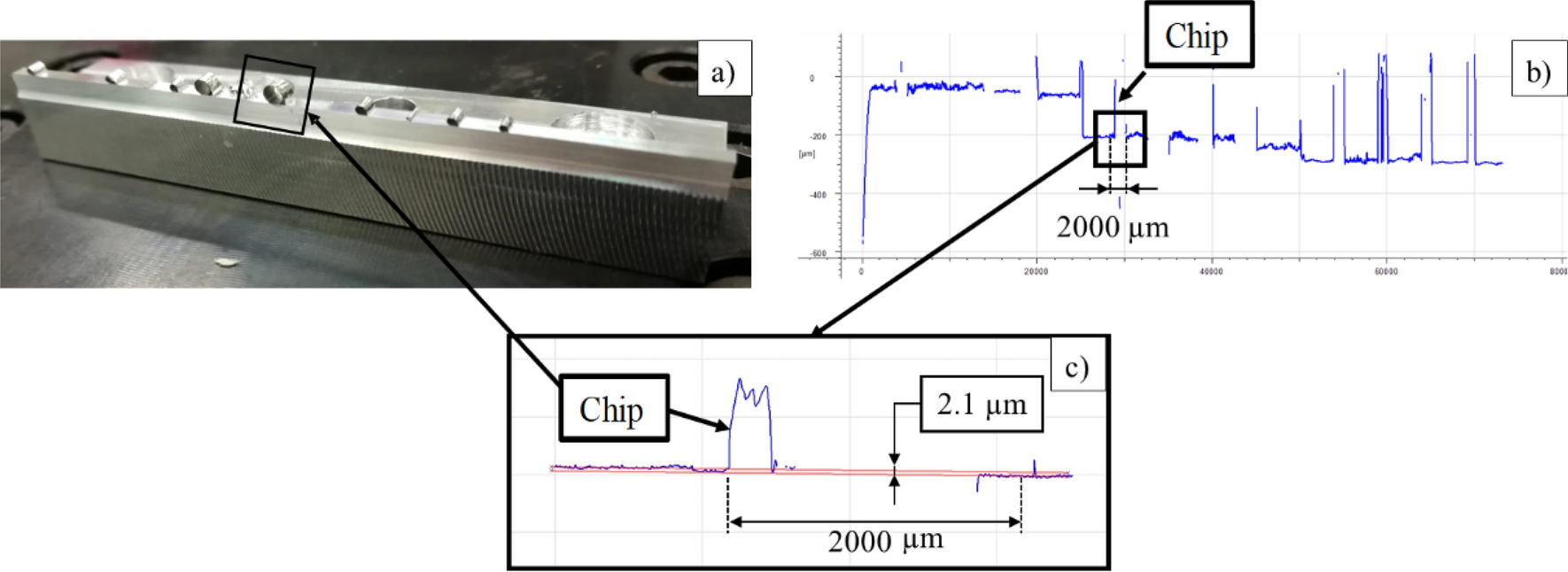

(a) A workpiece with multiple quick-stops, (b) overview profile obtained with the Alicona IFG4 at 20X and (c) detailed profile of the selected area at higher resolution (50X).
