Figure 3
From: In-SEM micro-machining reveals the origins of the size effect in the cutting energy

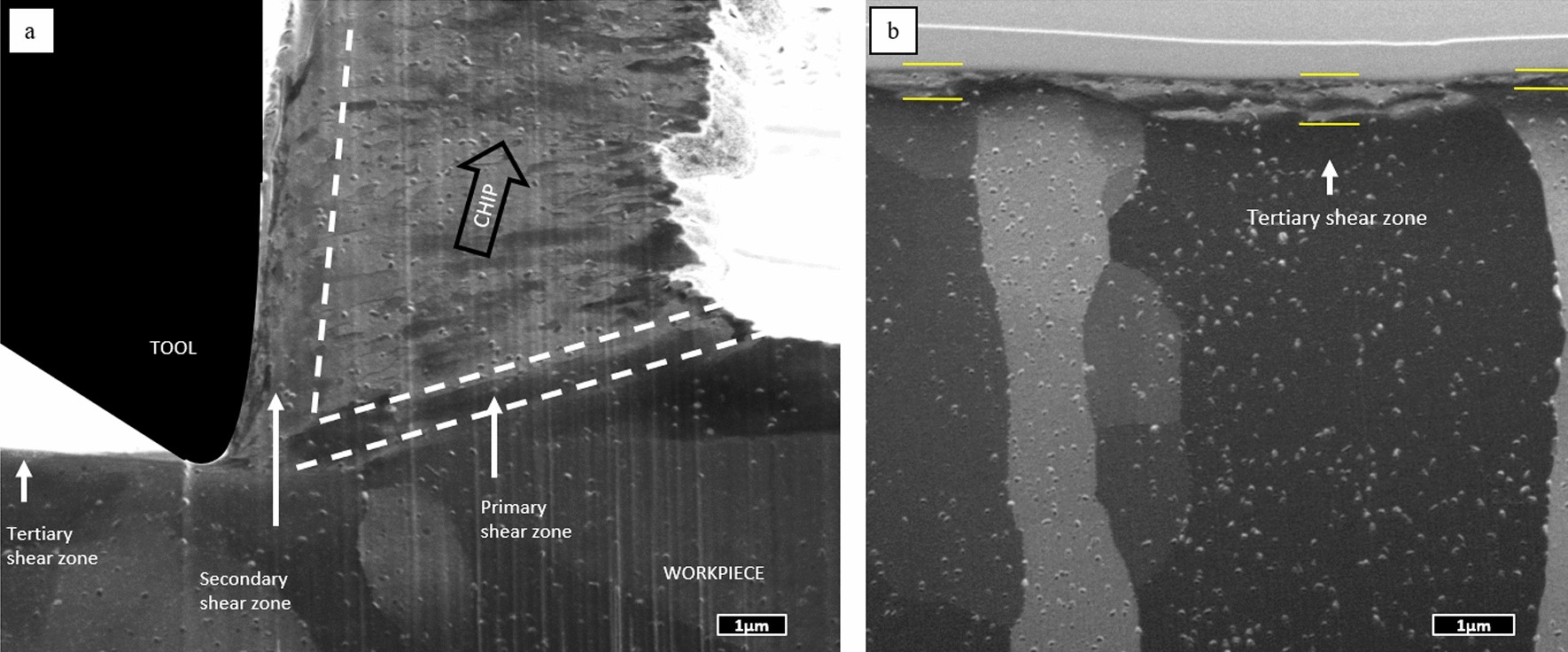

(a) Cross-section of a chip on a workpiece cut with 1 µm feed and 0.6 mm/min imaged by channelling contrast in FIB. (b) Detail of the size of tertiary shear zone after cutting action on grains with different orientation.
