Figure 4
From: Double twist torsion testing to determine the non recrystallization temperature

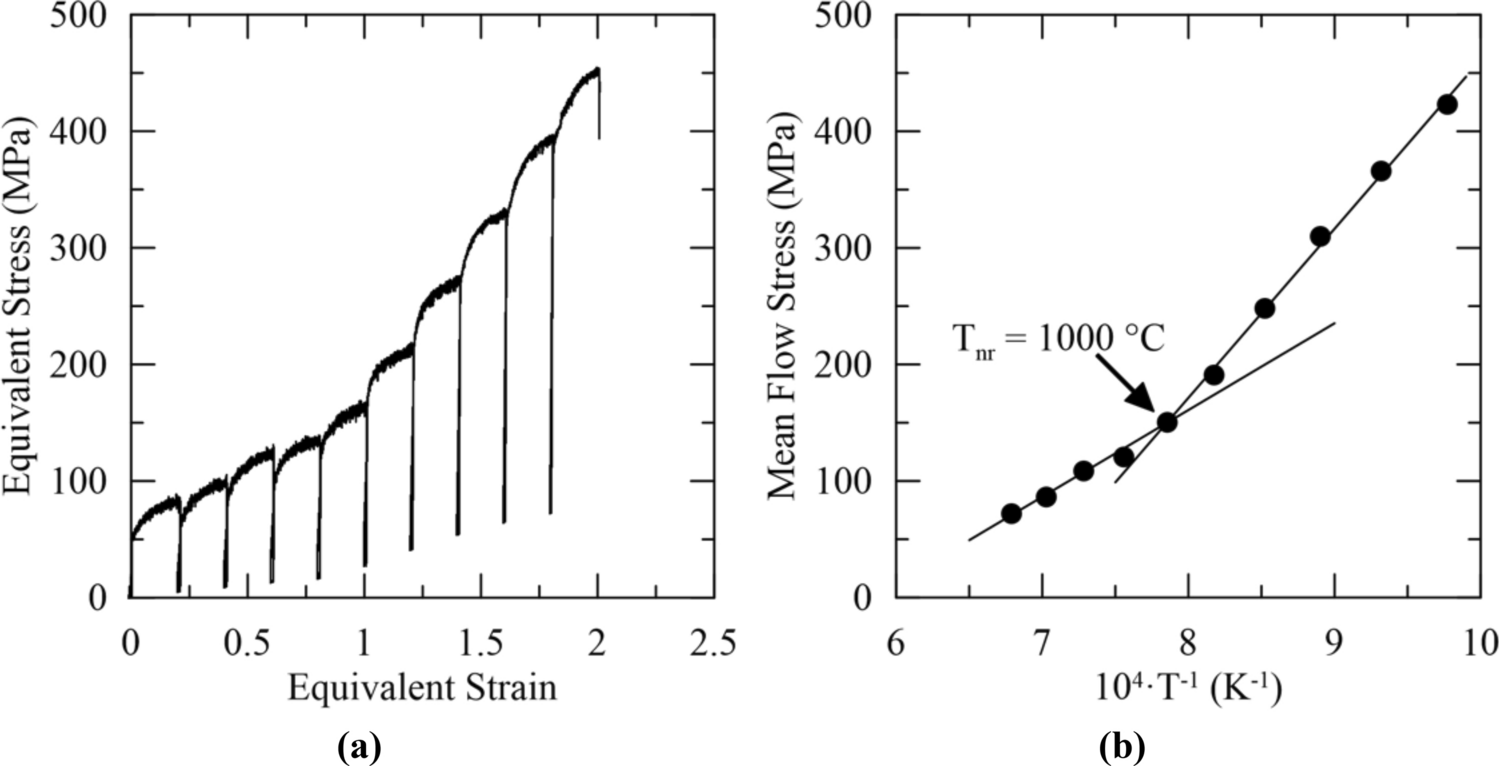

Mechanical data from a ten pass multi-step hot torsion test showing the (a) equivalent stress–equivalent strain curves and (b) MFS versus inverse temperature results with Tnr determined to be 1000 °C for this trial.
