Figure 7
From: Double twist torsion testing to determine the non recrystallization temperature

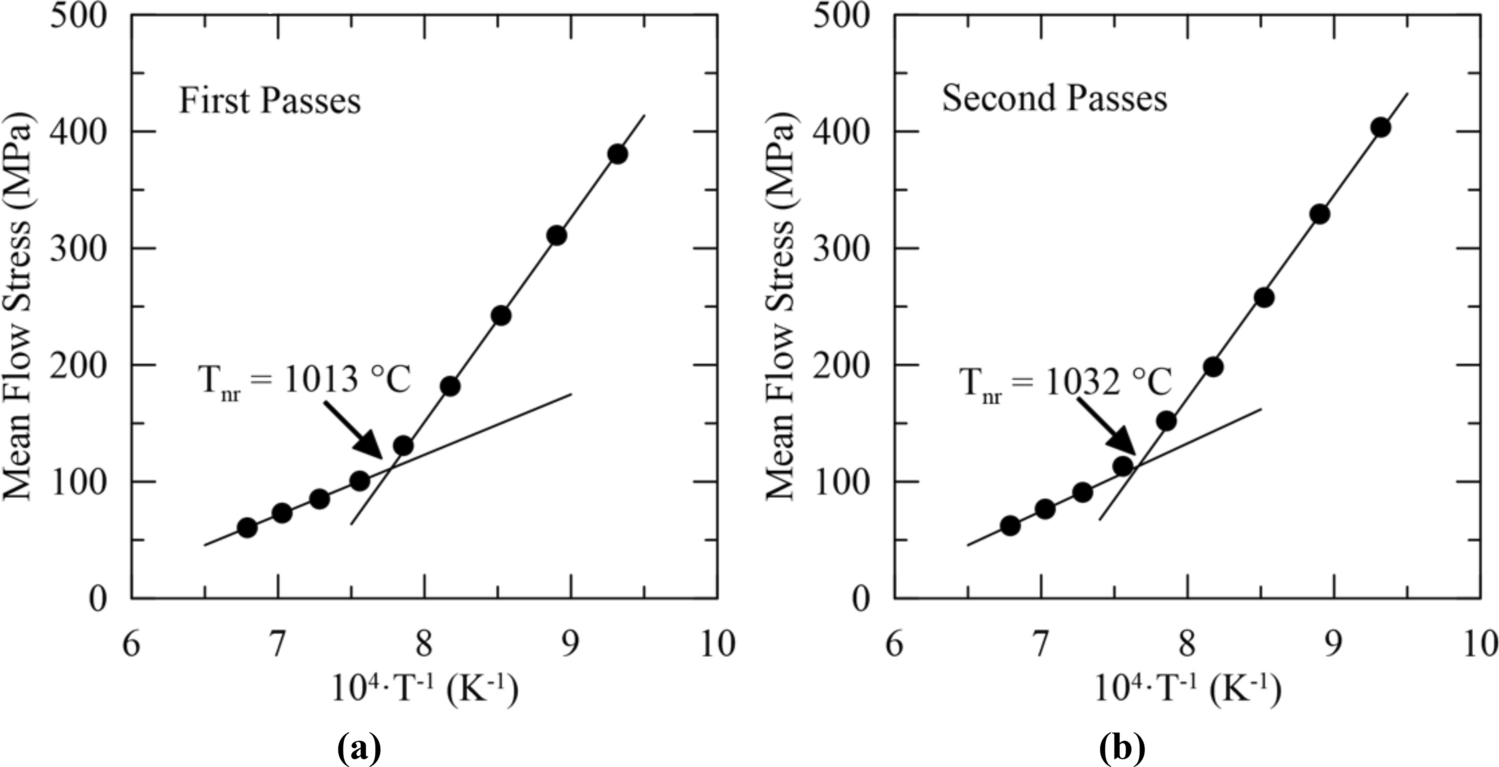

Tnr determination from the double-twist torsion test using the MFS versus inverse temperature approach for the set of (a) first and (b) second deformation passes. Tnr was determined to be 1013 and 1032 °C from the series of first and second deformation passes, respectively, for this trial.
