Figure 1
From: Leaching and solvent extraction purification of zinc from Mehdiabad complex oxide ore

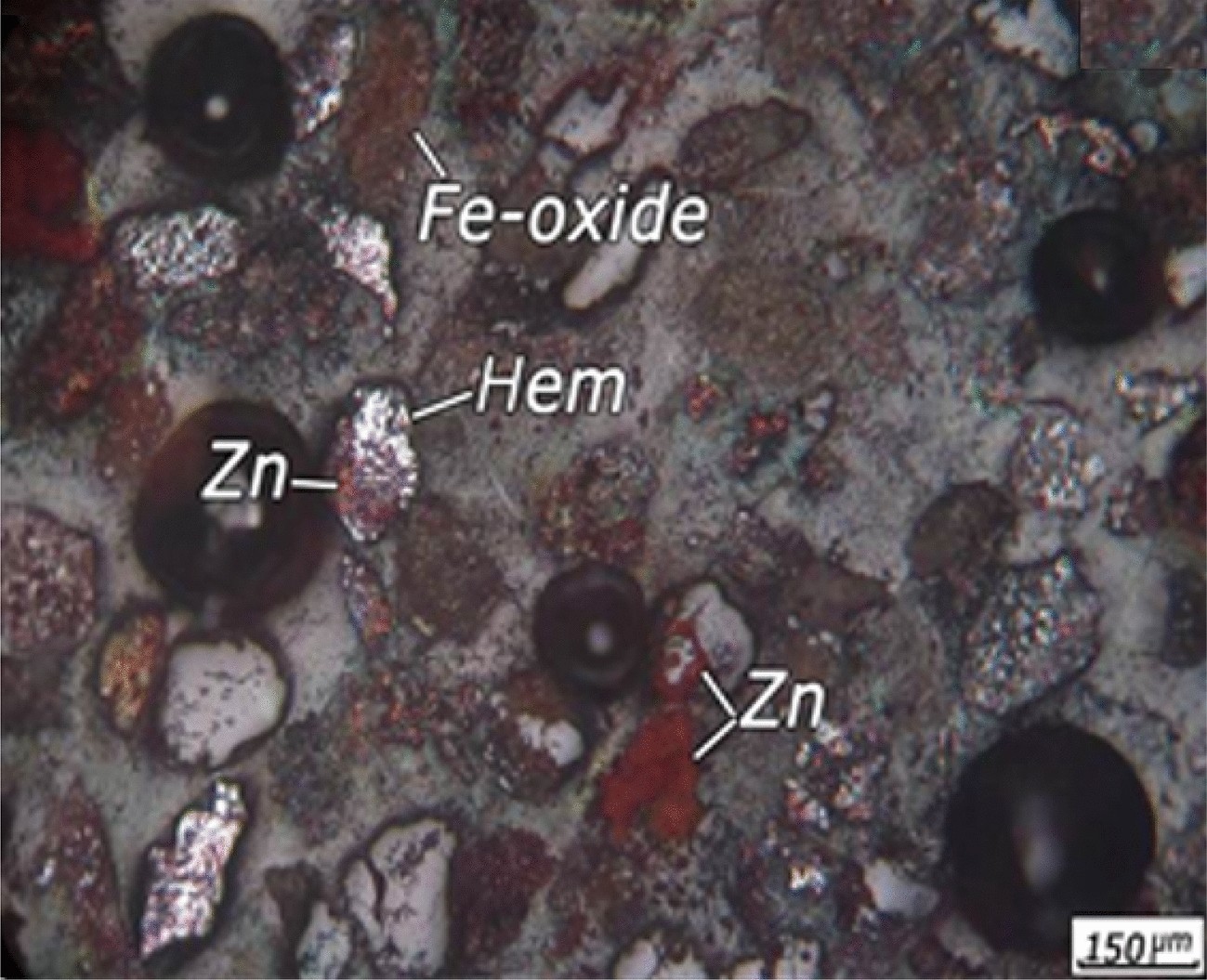

An optical microscopic image from + 90 µm size fraction showing the presence of Hem = Hematite, Zn = Zn oxide minerals, Fe-oxide = Fe oxide minerals in the ore.
