Figure 7
From: Leaching and solvent extraction purification of zinc from Mehdiabad complex oxide ore

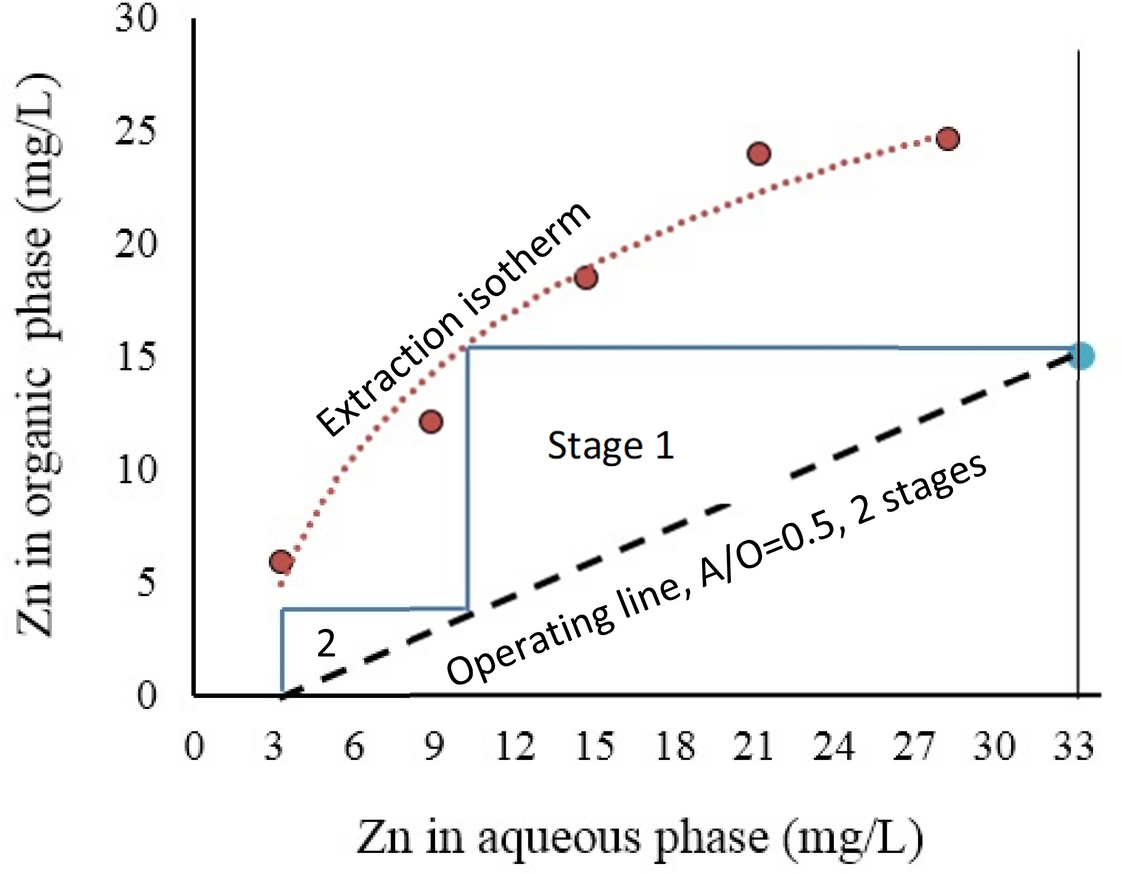

McCabe–Thiele plot of the extraction of zinc with 33% (v/v) D2EHPA. Extraction isotherm, pH = 2.5 and O:A = 0.2–5. Operating line slope (A/O) = 0.5.
