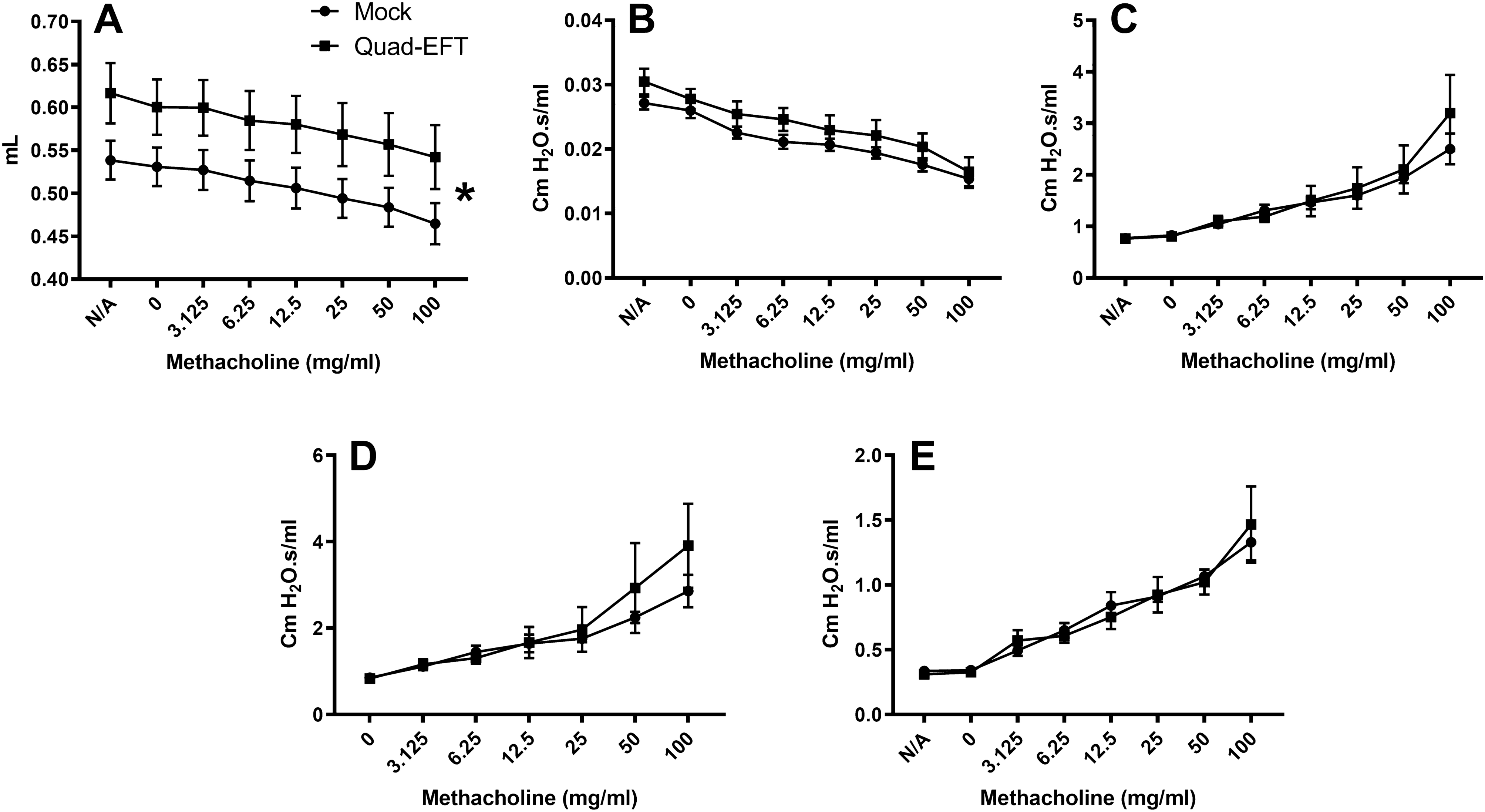

Figure 5
From: Changes in lung immune cell infiltrates after electric field treatment in mice
Lung function testing in EFT and mock-treated mice. Mice were subjected to the allergic inflammation model as in Fig. 4. Quad-EFT and Mock control groups were analyzed for lung function parameters using a flexiVent system at day 15. (A) Inspiratory capacity, respiratory system (B) compliance, (C) resistance, (D) maximum resistance, and (E) Newtonian resistance are shown. Data are shown as + / − SEM of n = 7–8 per group. *p < 0.05 by ANOVA.
