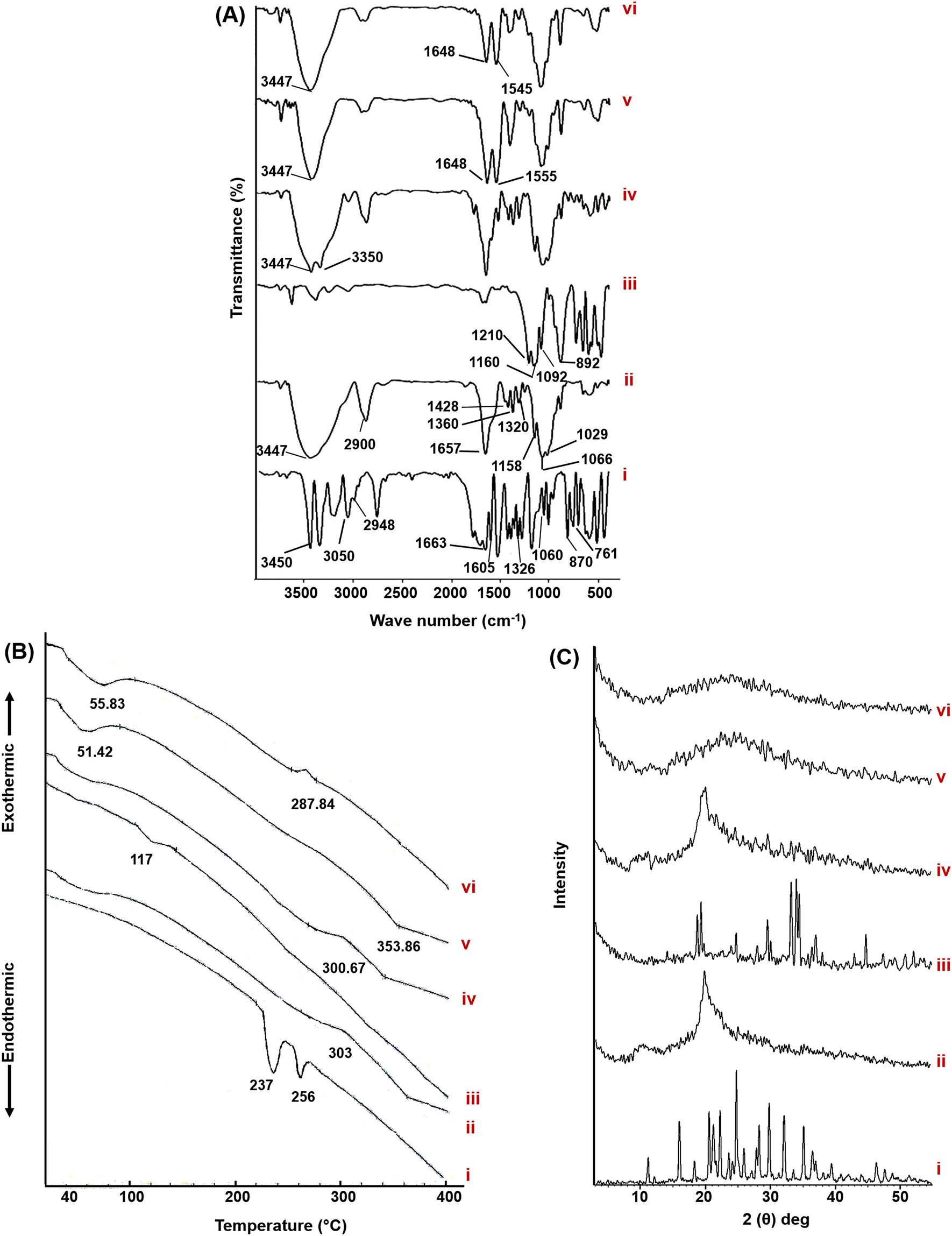

Solid characterization. (A) FT-IR spectra, (B) DSC thermograms, and (C) PXRD patterns of pure ALL (i), CS (ii), STPP (iii), physical mixture of ALL, CS and STPP (iv), plain CS/STPP NPs (v) and ALL-loaded CS/STPP NPs (F-9) (vi). DSC thermograms were fitted with a Shimadzu TA-60 series (https://www.ssi.shimadzu.com/products/thermal-analysis/labsolutions-ta-software.html).
