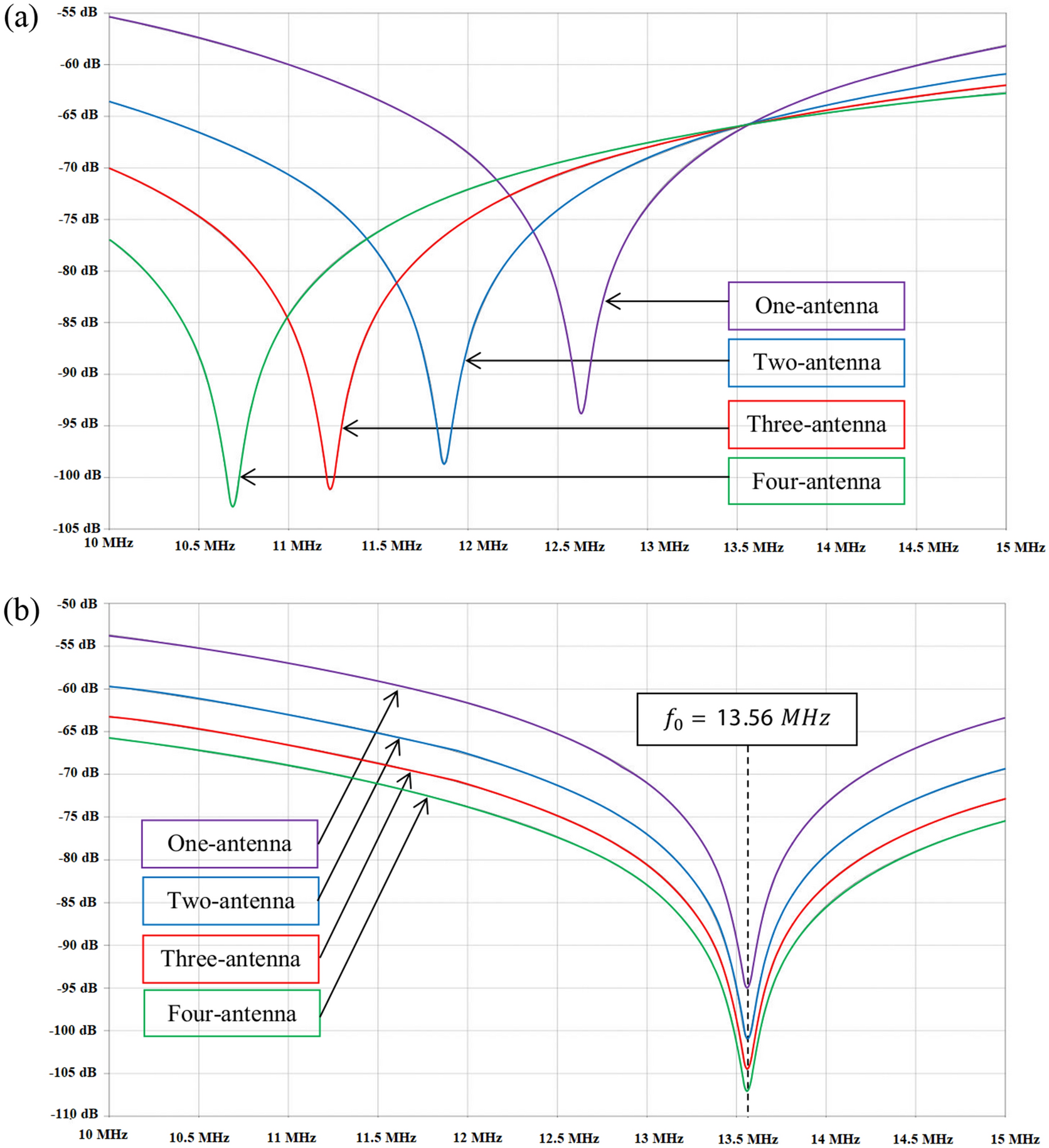

Figure 3
Simulated current in the branch of the impedance analyzer in dBA of the textile NFC combiners versus the frequency. (a) Current without taking into account CSMA. (b) Current with taking into account CSMA (C’ = C − N.CSMA).
