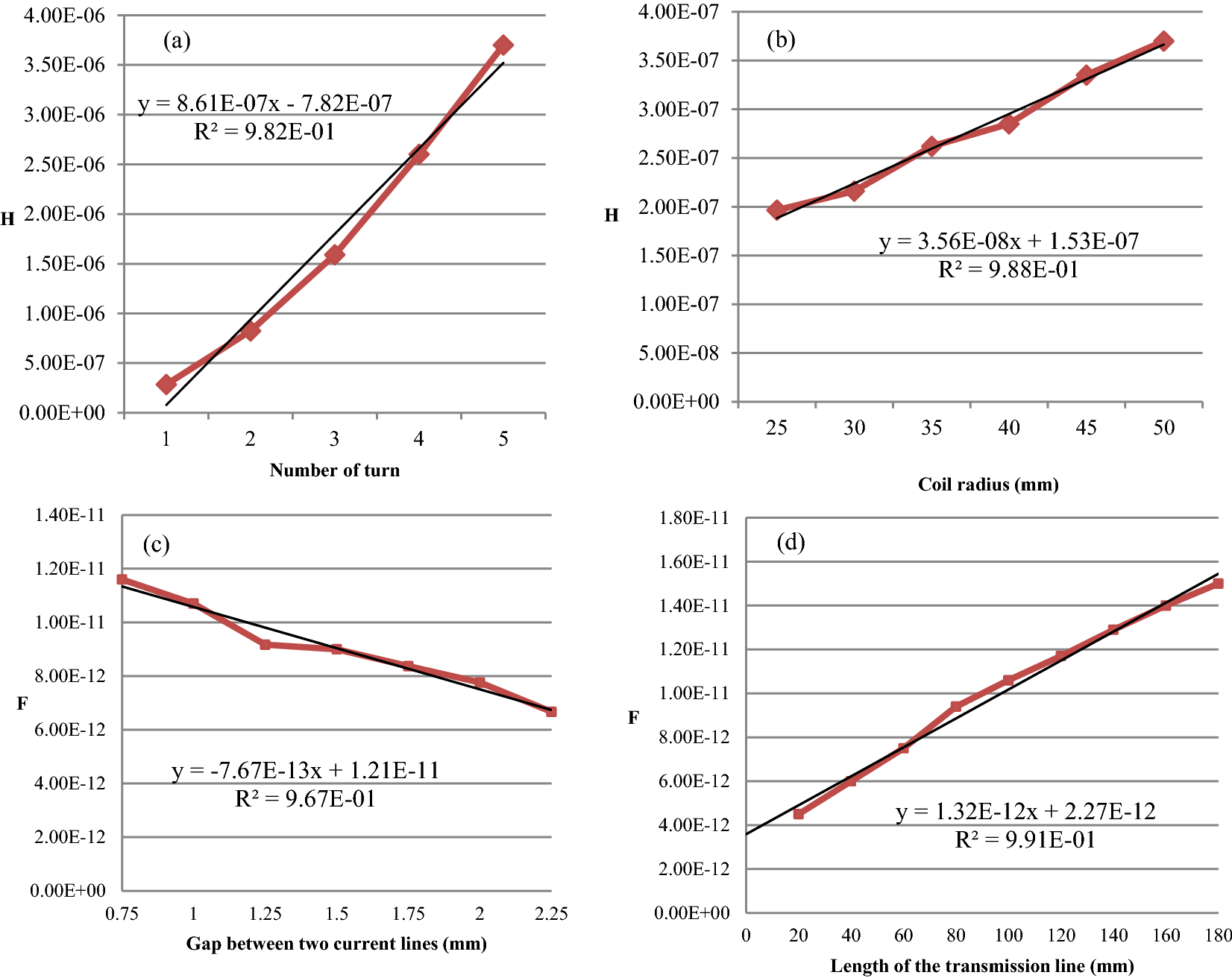

Figure 7

Evolution of the coil inductance versus (a) the number of turns and (b) the radius¹⁸. (c) Evolution of the intrinsic capacity of a textile transmission line (l = 100 mm) versus the gap between its two current lines and (d) the evolution of the intrinsic capacity of a textile transmission line (d = 0.75 mm) versus its length.
