Figure 2
From: Radiolysis generates a complex organosynthetic chemical network

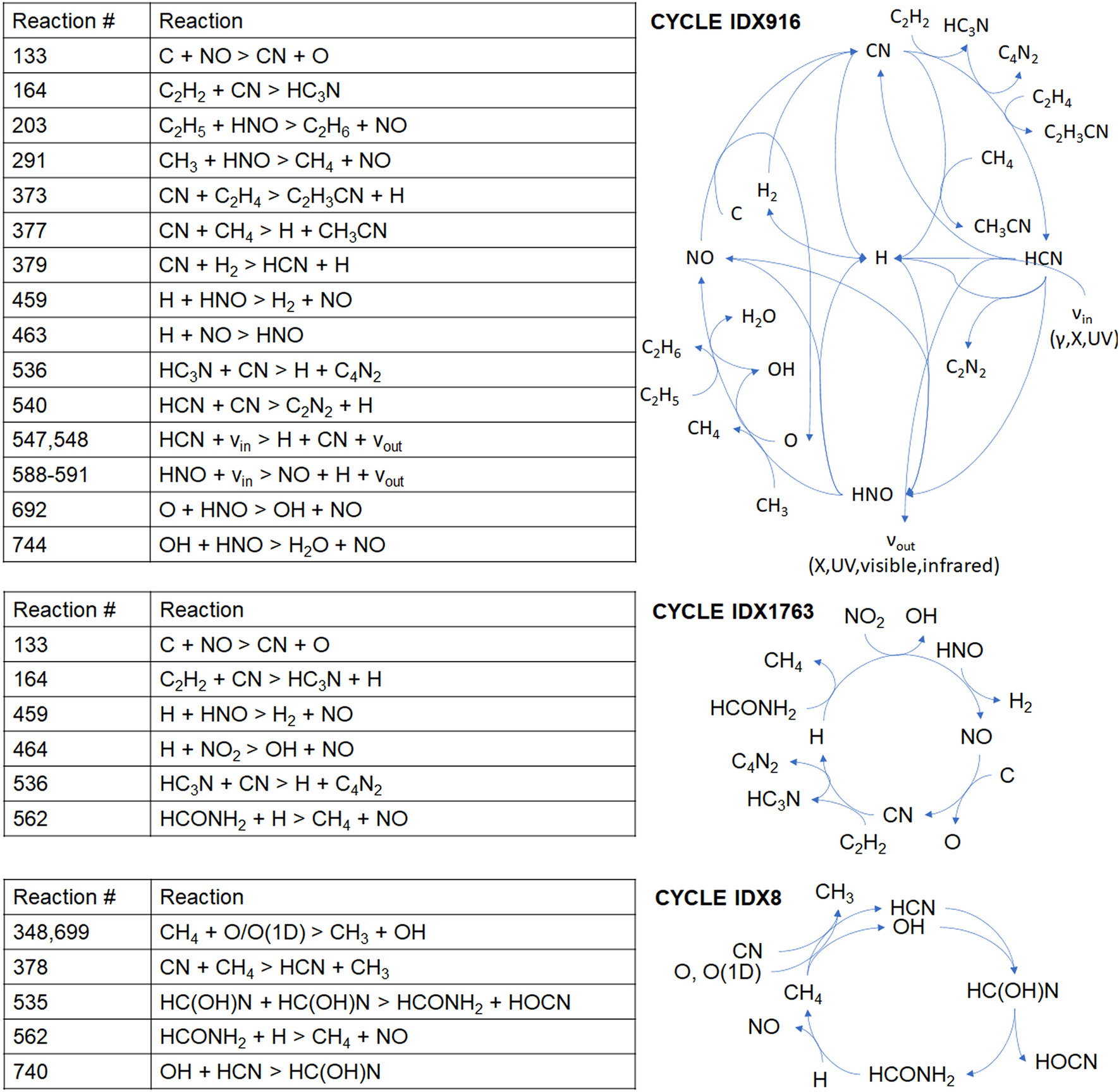

Three examples of simple cycles (IDX8, IDX1763 and IDX916) with net reactions that do not reduce to reactions present elsewhere within the radiolytic network. For simplicity, cycle depictions do not include stoichiometry.
