Figure 1 | Scientific Reports

Figure 1

From: Mantle wedge diapirs detected by a dense seismic array in Northern Taiwan

Figure 1

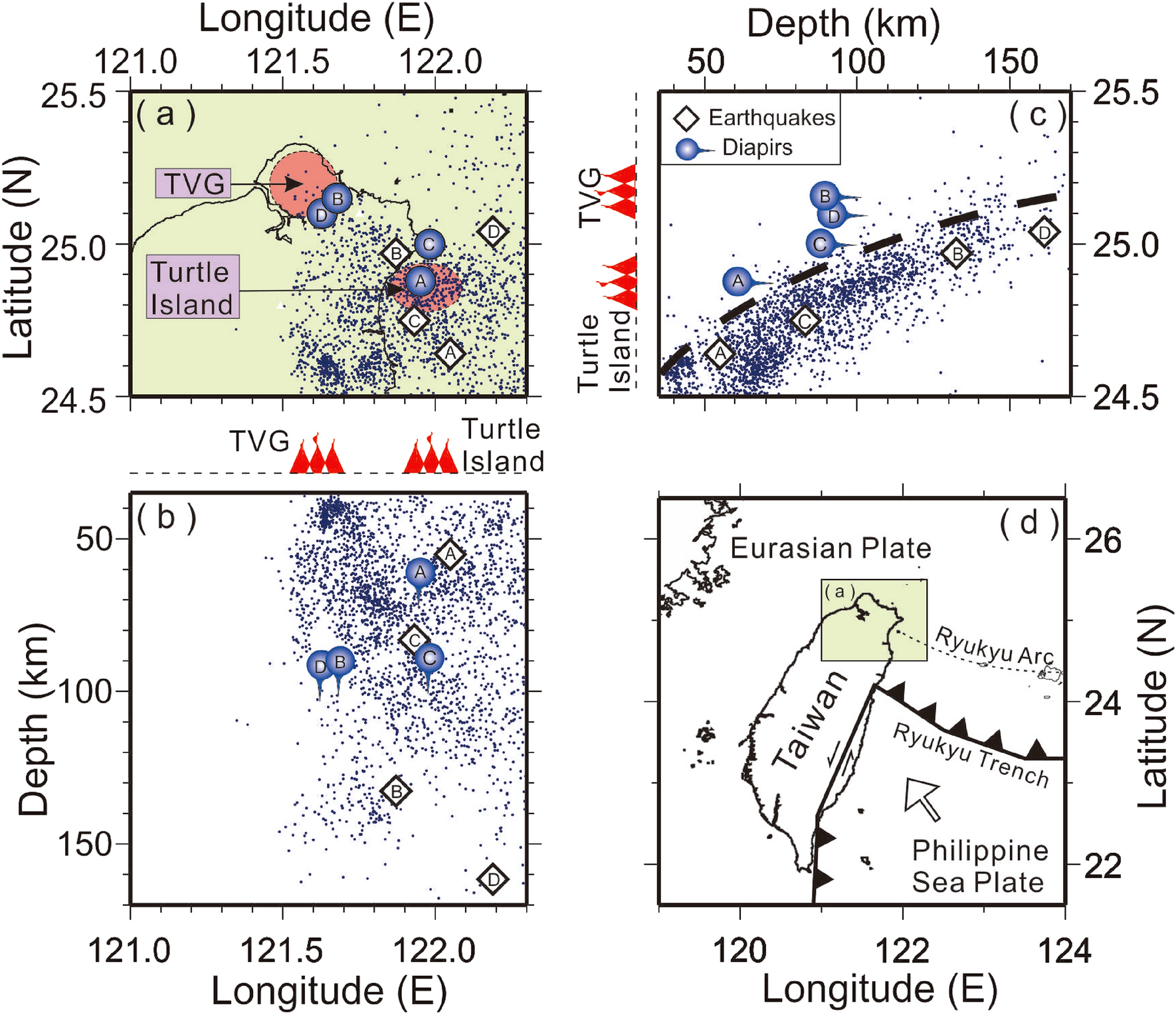

Locations of large earthquakes (diamonds), background seismicity (small dots), diapirs (blue lightbulbs or circles) and two active volcanoes (red areas) are projected on the map (a) and two depth profiles (b) and (c), respectively. The general tectonics in the Taiwan area is plotted in (d). This figure was created by Generic Mapping Tools (GMT version 4.5.2; URL: gmt.soest.hawaii.edu).
