Figure 5
From: Mantle wedge diapirs detected by a dense seismic array in Northern Taiwan

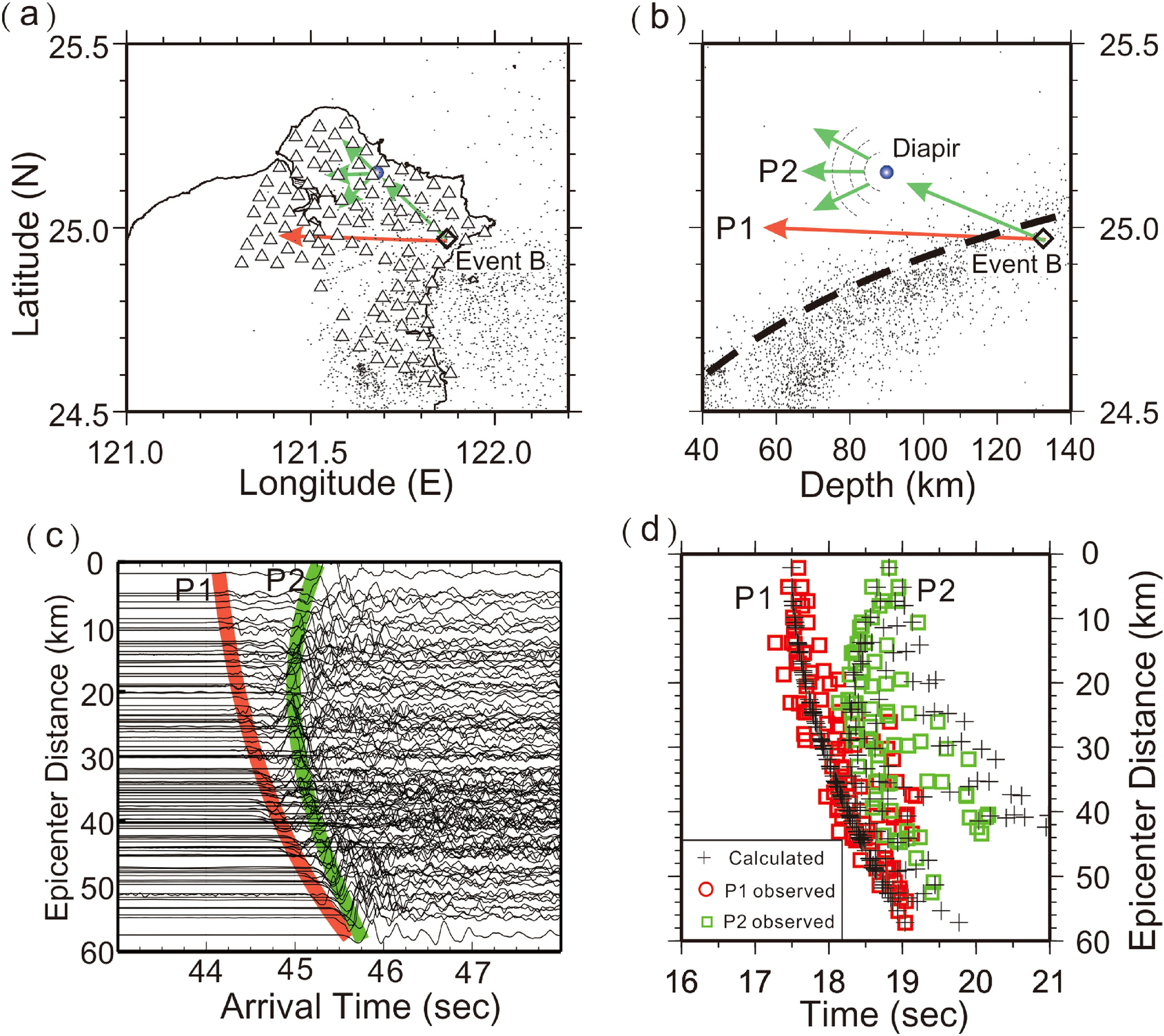

Locations of seismic stations (triangles), Event B (diamond) and diapir (blue circle) on the map (a) and depth profile (b). (c) The arrivals of P1 and P2 are, respectively, marked in red and green on the vertical seismograms plotted with epicentral distances. (d) The comparison between the observed arrivals of P1 (red circles) and P2 (green squares), and their calculated arrivals (pluses). This figure was partially created by Generic Mapping Tools (GMT version 4.5.2; URL: gmt.soest.hawaii.edu) and SAC software (version 101.5; URL: ds.iris.edu).
