Figure 5

From: Bioinspired antireflective flexible films with optimized mechanical resistance fabricated by roll to roll thermal nanoimprint

Figure 5

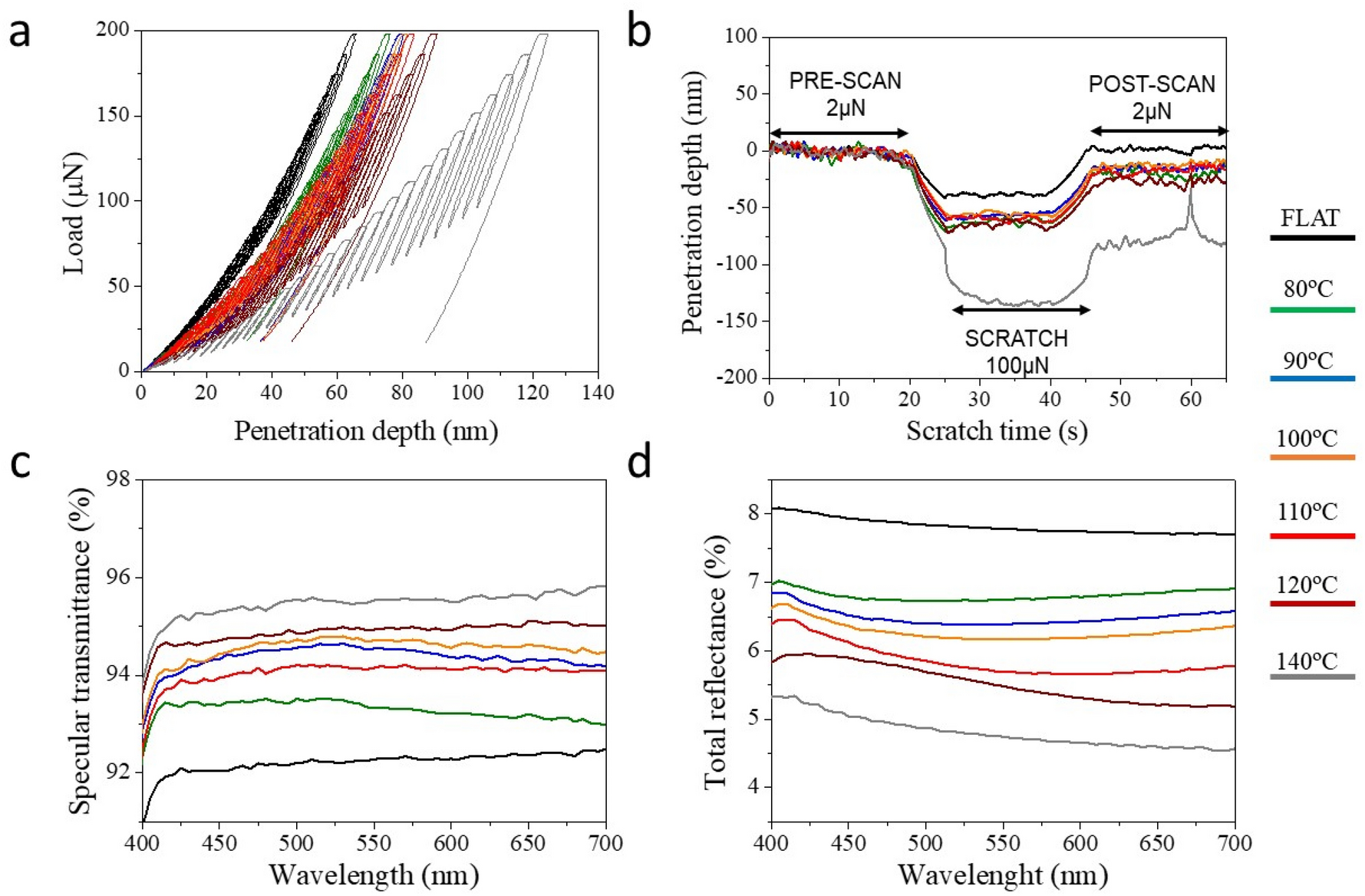

Summary of mechanical properties and broadband optical performance of PMMA moth-eye R2R nanoimprinted films processed at web speed of 0.5 m·min−1: (a) Representative nanoindentation loading–unloading curves. (b) Representative nanoscratch measurements obtained for a normal applied load of 100 µN. Three regions are plotted sequentially comprising the pre-scan, the scratch and the post-scan. (c) Specular transmittance spectra and (d) total reflectance spectra.
