Figure 4

From: Effect of homogenization and solution treatments time on the elevated-temperature mechanical behavior of Inconel 718 fabricated by laser powder bed fusion

Figure 4

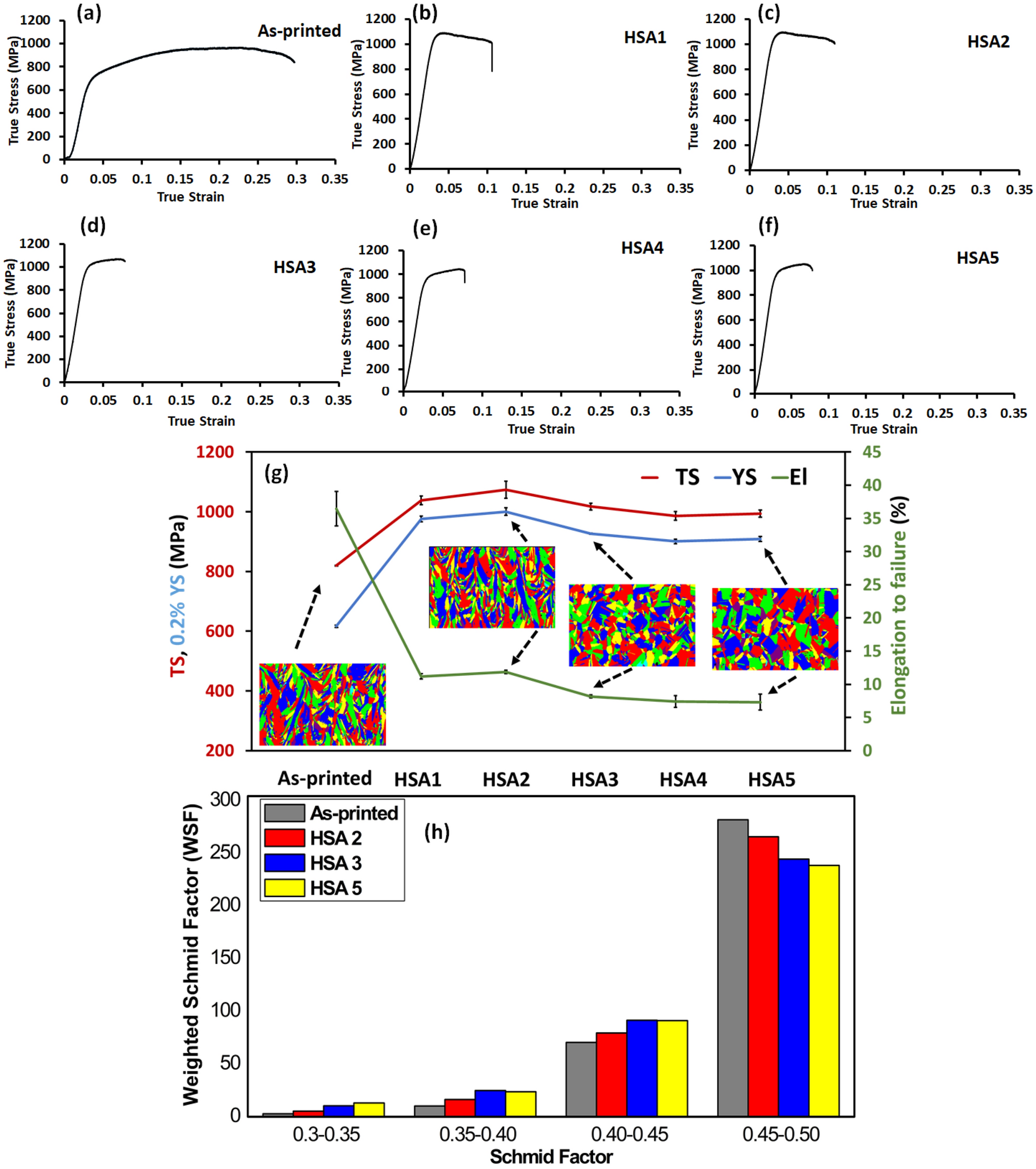

(a–f) True stress-true strain curves at 650 °C of the LPBF IN718 in the following conditions: (a) as-printed, (b) HSA1, (c) HSA2, (d) HSA3, (e) HSA4 and (f) HSA5; (g) evolution of the high temperature of tensile properties and the grain structure map as a function of the heat treatment conditions; (h) distribution of the Weighted Schmid Factor (WSF) under the as-printed and heat treatment conditions.
