Figure 7 | Scientific Reports

Figure 7

From: Mechanomyography and acceleration show interlimb asymmetries in Parkinson patients without tremor compared to controls during a unilateral motor task

Figure 7

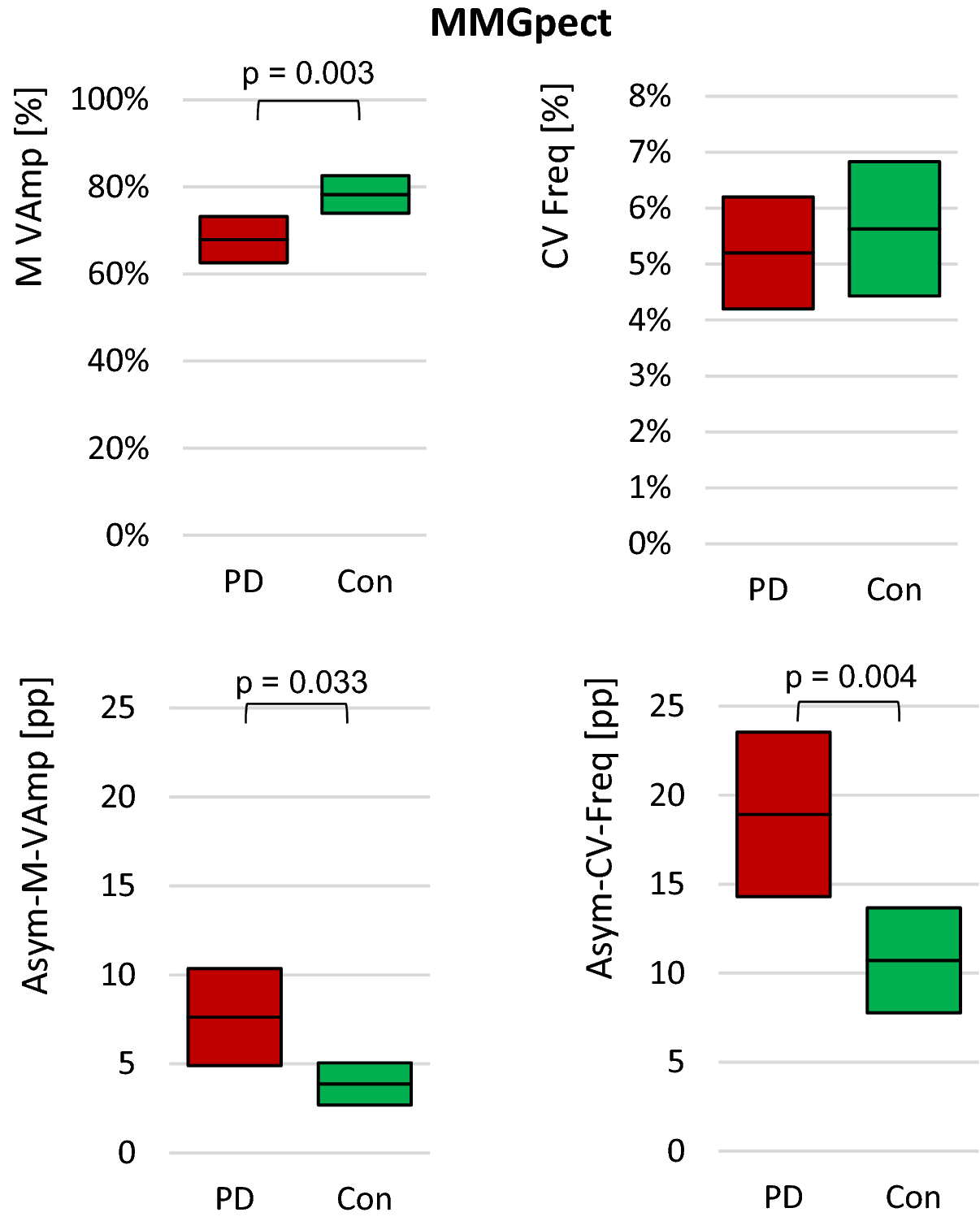

Oscillatory parameters of MMGpect. Displayed are the 95%-CIs of the parameters VAmp and frequency of the MMGpect (above) and of the related interlimb asymmetries (below). The M of VAmp differs significantly with p = 0.003, r = 0.34 and the CV of frequency shows no significant difference between the total group of PD and Con. The side differences, however, are significantly different with p = 0.033 (r = 0.37) for Asym-M-VAmp and p = 0.004 (r = 0.48) for Asym-CV-Freq.
