From: Application of response surface methodology on the nanofluid flow over a rotating disk with autocatalytic chemical reaction and entropy generation optimization

Figure 10

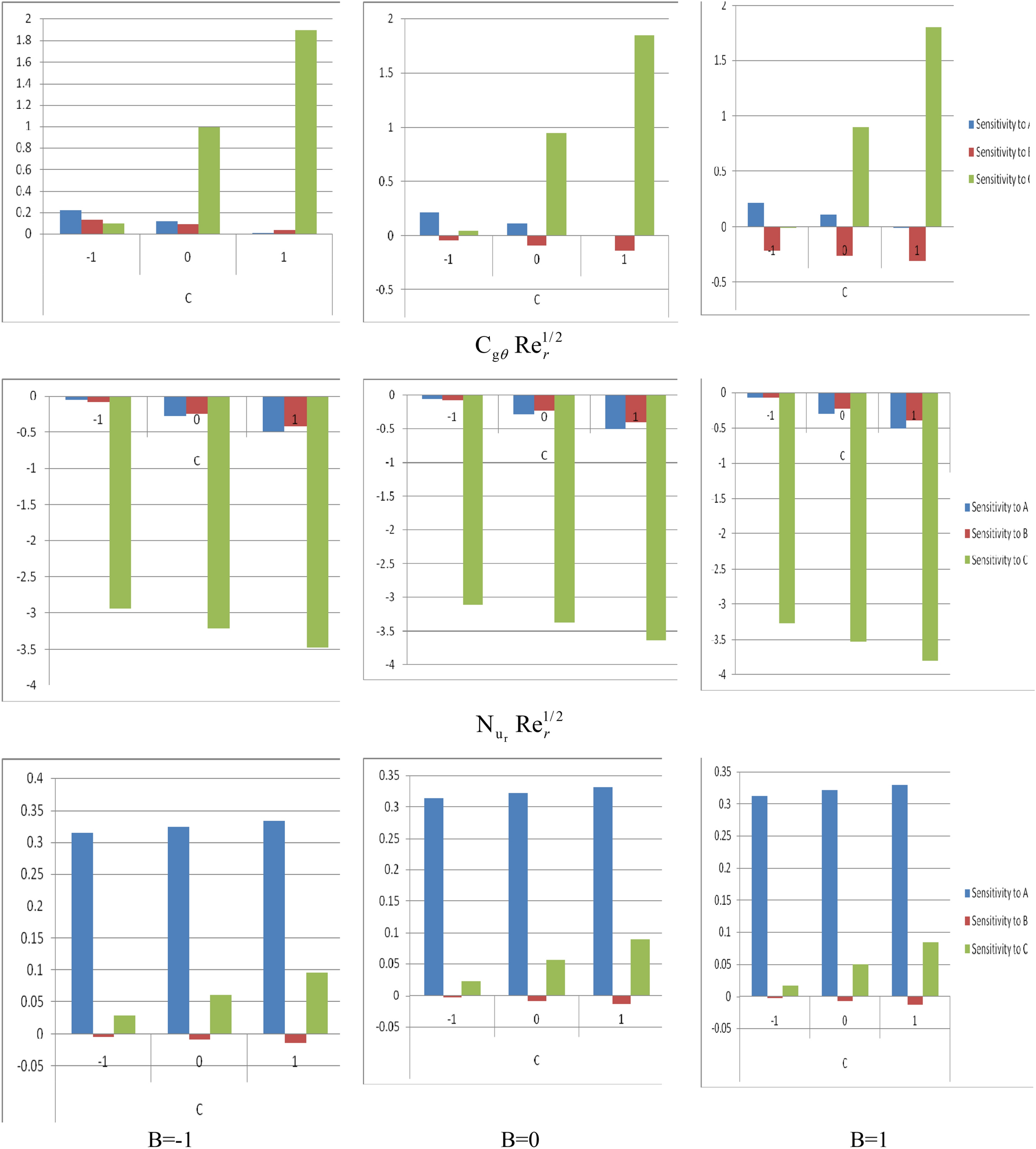

Sensitivity analysis with A = 0 and all combinations of Magnetic parameter and suction parameter for skin friction coefficients \(C_{fr} Re_{r}^{1/2}\) is presented in the upper panel, for skin coefficient \(C_{{g\theta^{*} }} Re_{r}^{1/2}\) is presented in the middle panel and for the local Nusselt number \(\;Nu_{r} Re_{r}^{ - 1/2}\) is presented in the lower panel.
