From: Application of response surface methodology on the nanofluid flow over a rotating disk with autocatalytic chemical reaction and entropy generation optimization

Figure 11

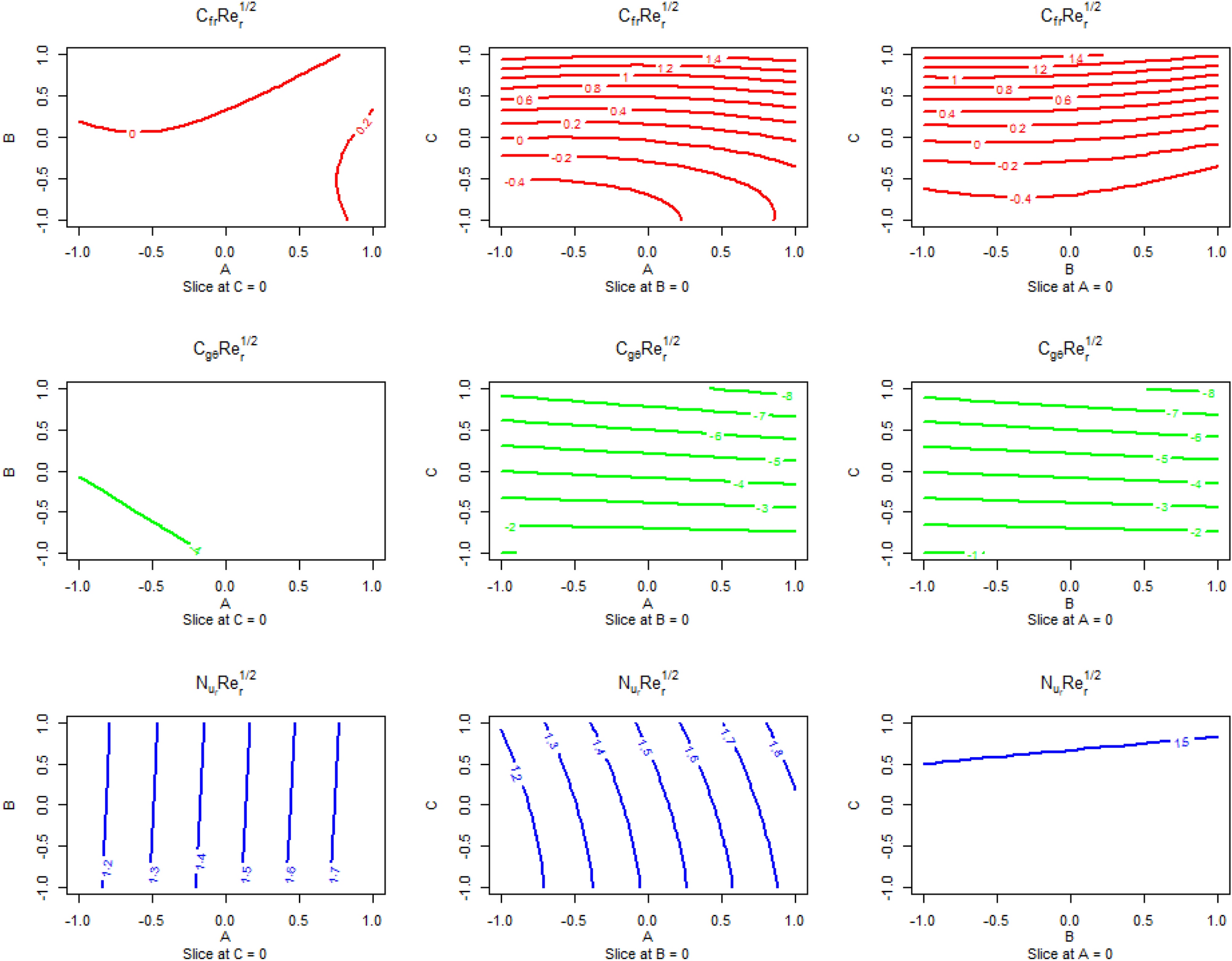

Predicted responses as a function of input parameters coded level with Nanoparticle volume fraction and Magnetic parameter, Magnetic parameter, and suction parameter and Nanoparticle volume fraction and suction parameter are presented for skin friction coefficients \(C_{fr} Re_{r}^{1/2}\) in the upper panel, for skin coefficient \(C_{{g\theta^{*} }} Re_{r}^{1/2}\) in the middle panel and for the local Nusselt number \(\;Nu_{r} Re_{r}^{ - 1/2}\) in the lower panel.
