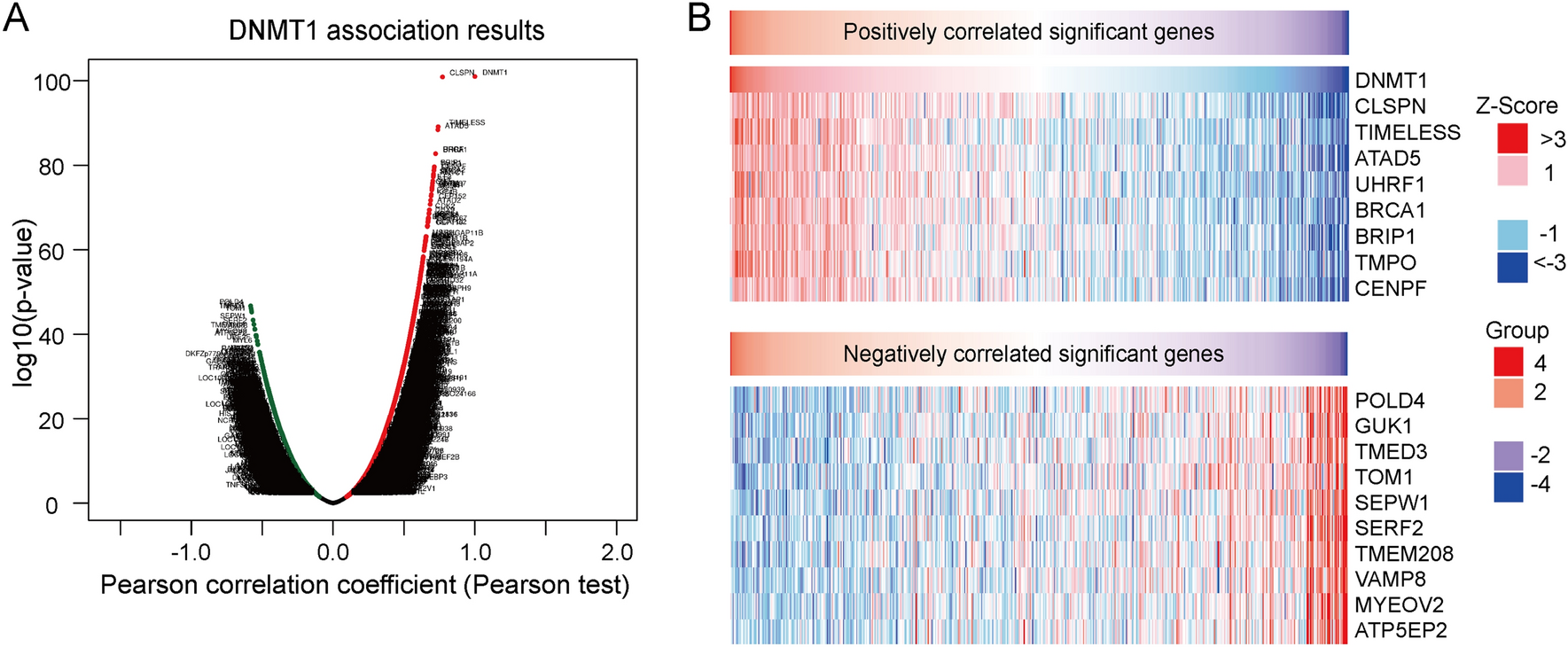

Figure 5

Distribution of genes that associated with DNMT1 expression. (A) The volcano map shows the genes that positively and negatively correlated with DNMT1 expression. (B) The heat-map shows the top 10 genes that positively correlated and negatively with DNMT1 expression.
