Figure 2
From: Gene-based association analysis identifies 190 genes affecting neuroticism

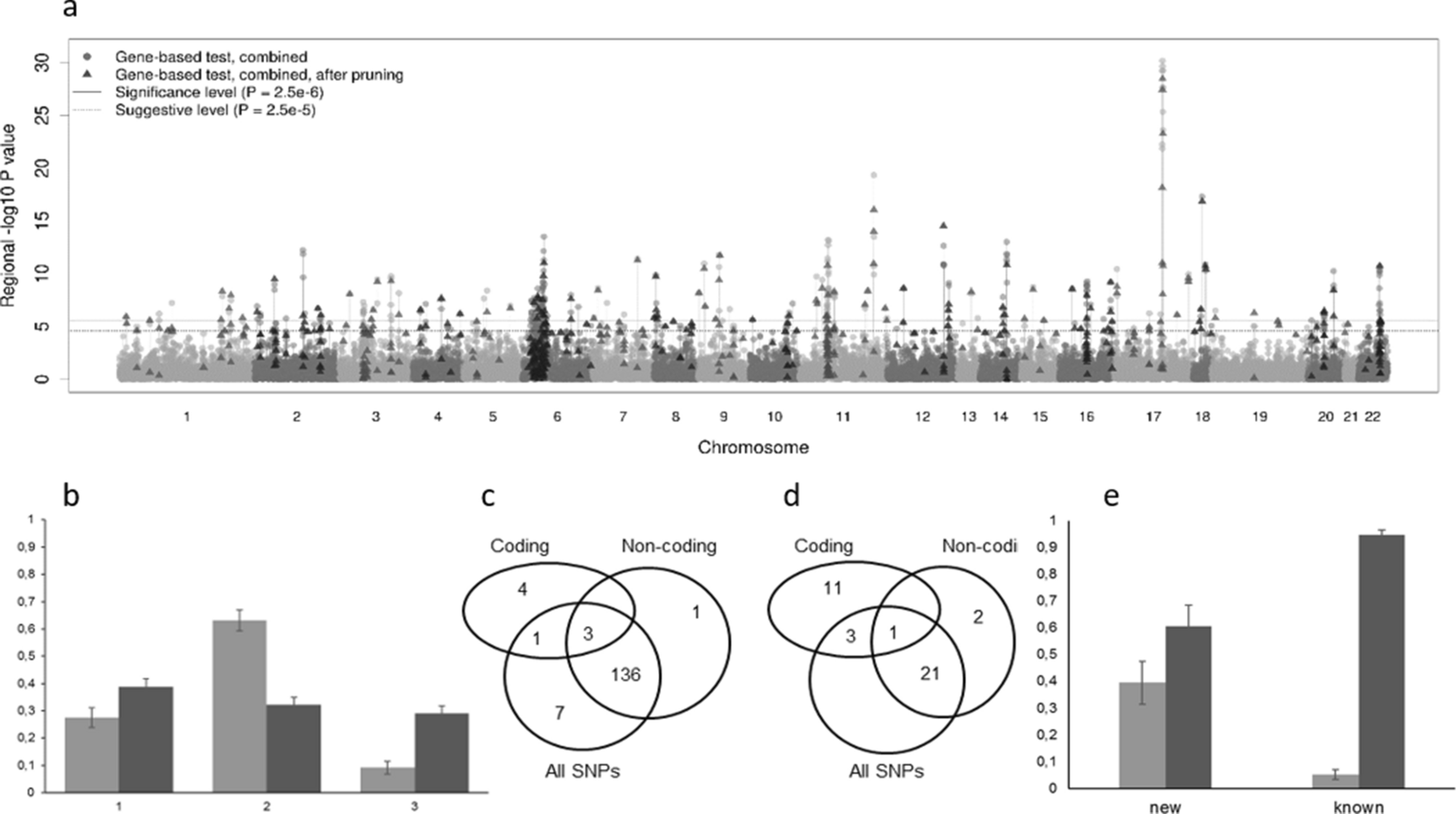

The results of gene-based association analysis. (a) Manhattan plot showing the –log10 transformed p-value of each gene. (b) Proportion of genes identified by gene-based association analysis only (1), both gene-based association analysis and position mapping (2) and positional mapping only (3) among confirmed (light gray) and non-confirmed (dark gray) genes. (c) Venn diagram showing the overlap of known genes identified using different sets of SNPs. (d) Venn diagram showing the overlap of new genes identified using different sets of SNPs. (e) Proportion of genes identified using non-coding (dark gray) and protein-coding SNP sets (light gray) in the new and known genes.
