Figure 1
From: Genome-wide CRISPR/Cas9-knockout in human induced Pluripotent Stem Cell (iPSC)-derived macrophages

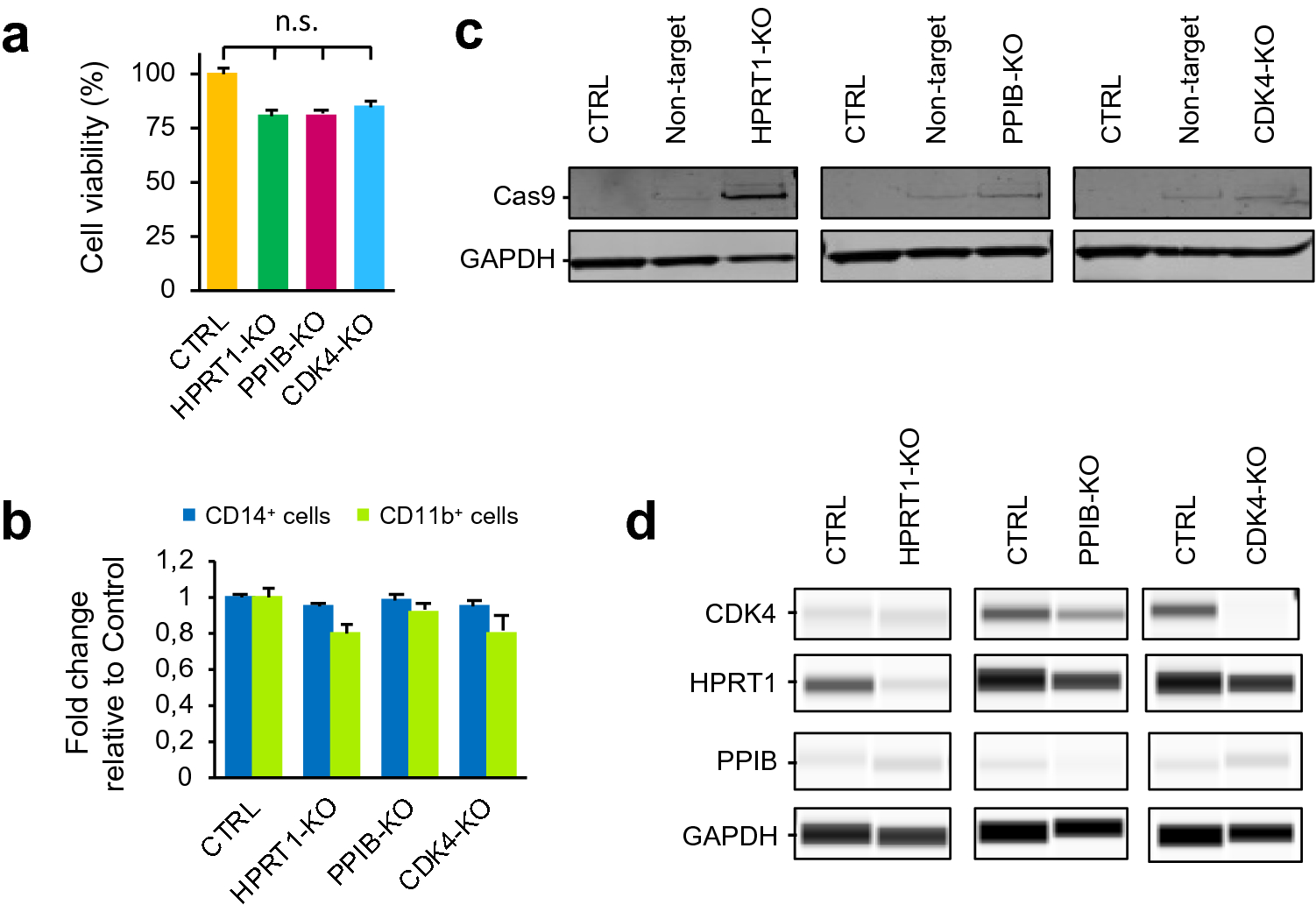

iPSC-derived macrophage knock-out targeting three macrophage non-essential genes: HPRT1; PPIB and CDK4. (a) Percentage of cell viability (±SEM) in iPSC-derived macrophages 3 days after transduction with pool of 4 sgRNAs of HPRT1, PPIB and CDK4 lentiviruses. CTRL sample are cells after spinfection with PB and Vpx. (b) Fold change (±SEM) of CD14+ and CD11b+ iPSC-derived macrophages 14 days after transduction with HPRT1, PPIB and CDK4 lentiviruses. (c) Western blot analysis of Cas9 protein in CRISPR/Cas9-transduced iPSC-derived macrophages. GAPDH loading control. (d) Detection of HPRT1, PPIB and CDK4 in capillary western blot (Wes) assay in transduced iPSC-derived macrophages (MOI 3). GAPDH loading control. Full length gels and blots are included in Supplementary Figs. S5 and S6. Capillary Wes images were obtained from Compass for SW 5.0.1. software. https://www.proteinsimple.com/compass. n.s. non-significant difference.
