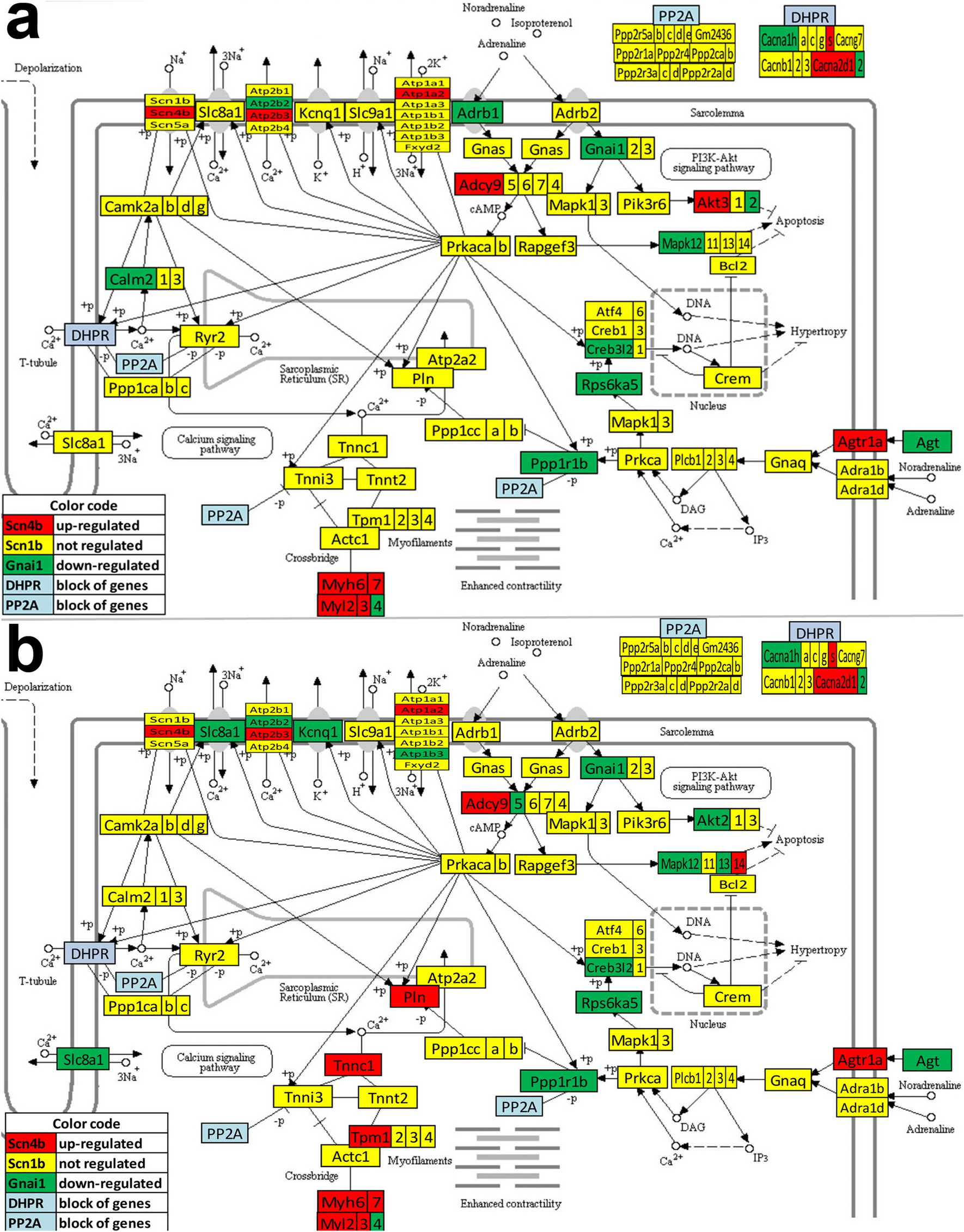

Figure 4

modified from https://www.genome.jp/dbget-bin/www_bget?path:mmu04261) of the differential expression of adrenergic signaling in cardiomyocytes (ASC) genes from: (a) the left ventricle vs left atrium and (b) the right ventricle vs right atrium. Red/green/yellow background of the gene symbol indicates up-/down-/not regulated. Genes with significant differences: adenylate cyclases (Adcy5, Adcy9), adrenergic receptor beta 1 (Adrb1), angiotensinogen (Agt), angiotensin II receptor type 1a (Agtr1a), thymoma viral proto-oncogenes (Akt2, Akt3), Ca⁺⁺ transporting ATPases (Atp2b2, Atp2b3), Na⁺/K⁺ transporting ATPases (Atp1a2, Atp1b3), calcium channels (Cacna1h, Cacna1s, Cacna2d1, Cacna2d2), calmodulin 2 (Calm2), cAMP responsive element binding protein 3-like 2 (Creb3l2), potassium voltage-gated channel subfamily Q member 1 (Kcnq1), mitogen-activated protein kinases (Mapk12, Mapk13, Mapk14), heavy (Myh6, Myh) and light myosins (Myl2, Myl3, Myl4), phospholamban (Pln), protein phosphatase 1 regulatory (inhibitory) subunit 1B (Ppp1r1b), ribosomal protein S6 kinase polypeptide 5 (Rps6ka5), sodium channels (Scn4b, Scn5a), solute carrier family 8 (sodium/calcium exchanger) member 1 (Slc8a1), troponin T1, skeletal, slow (Tnnt1) and tropomyosin 1 alpha (Tpm1).
