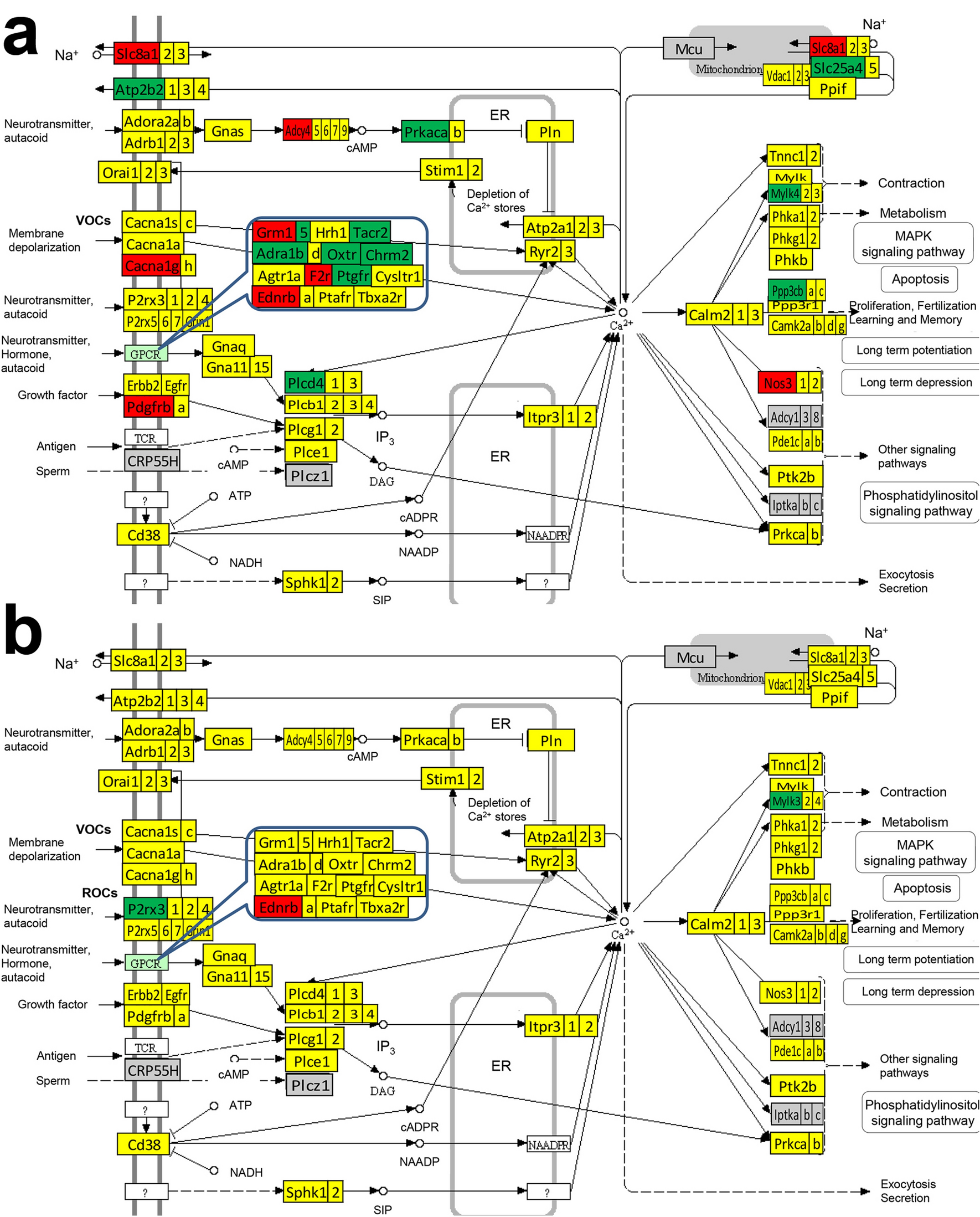

Figure 5

modified from https://www.genome.jp/dbget-bin/www_bget?mmu04020) of the differential expression of calcium signaling (CAS) genes in: (a) the right atrium with respect to the left atrium, (b) right ventricle vs left ventricle. Red/green/yellow background of the gene symbol indicates up-/down-/not regulated. Not quantified genes are on grey background. Genes with significant differences: Adcy4, adrenergic receptors (Adra1b), Atp2b2, Cacna1g, cholinergic receptor muscarinic 2 cardiac (Chrm2), endothelin receptor type B (Ednrb), coagulation factor II (thrombin) receptor (F2r), metabotropic glutamate receptors (Grm1, Grm5), myosin light chain kinase (Mylk4), nitric oxide synthase (Nos3), oxytocin receptor (Oxtr), purinergic receptor P2X ligand-gated ion channel 3 (P2rx3), platelet derived growth factor receptor (Pdgfrb), phospholipase (Plcd4), protein phosphatase 3, catalytic subunit, beta isoform (Ppp3cb), protein kinase cAMP dependent catalytic alpha (Prkaca), prostaglandin F receptor (Ptgfr), solute carriers (Slc25a4, Slc8a1), tachykinin receptor 2 (Tacr2).
