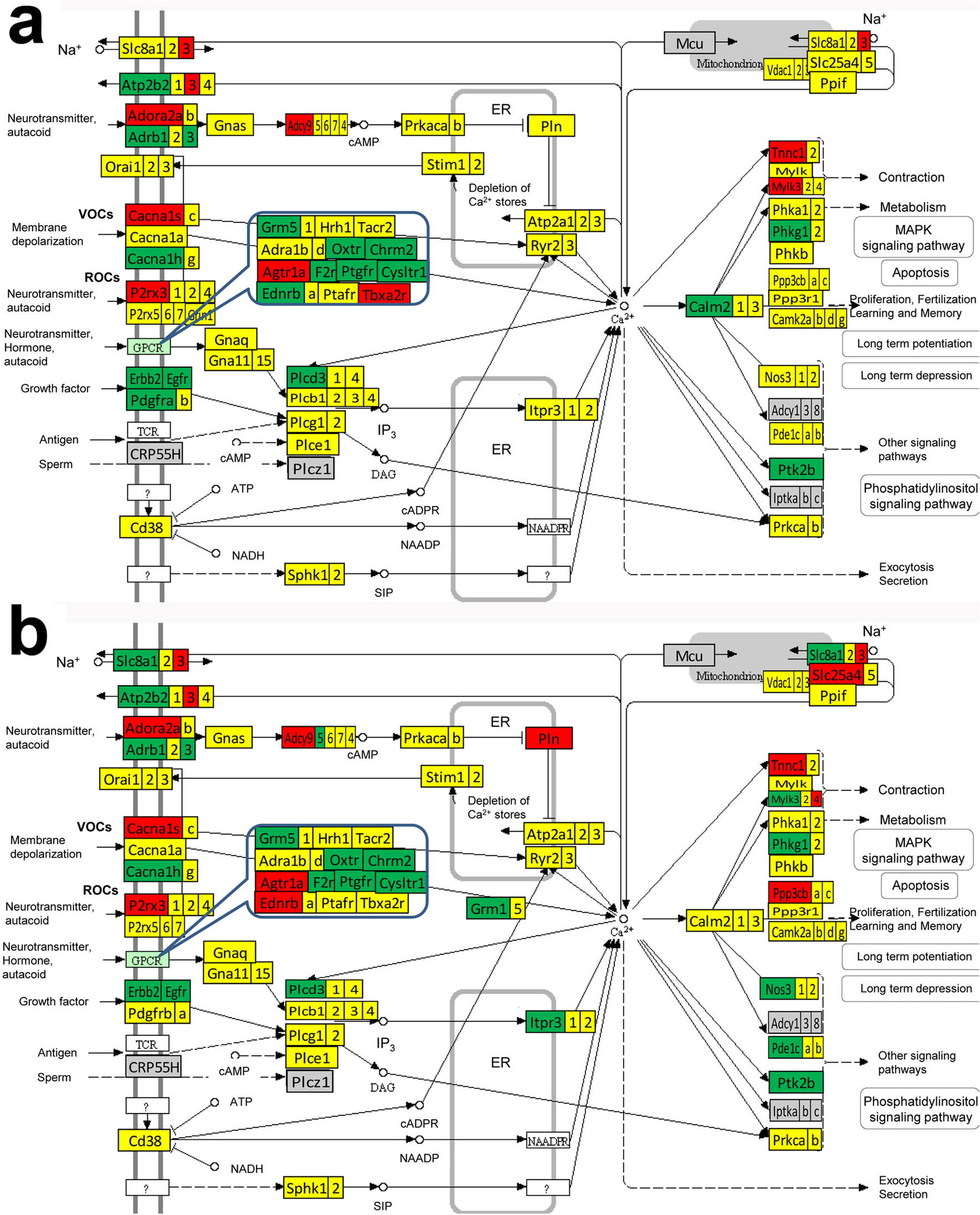

Figure 6

modified from https://www.genome.jp/dbget-bin/www_bget?mmu04020) of the differential expression of calcium signaling (CAS) genes in: a. left ventricle vs left atrium, b. right ventricle vs right atrium. Red/green/yellow background of gene symbol indicates up-/down-/not regulated. Red/green/yellow background of the gene symbol indicates up-/down-/not regulated. Not quantified genes are on grey background. Genes with significant differences: Adcy5, Adcy9, adenosine A2a receptor (Adora2a), adrenergic receptors (Adrb1, Adrb3), Agtr1a, Atp2b2, Atp2b3, Cacna1h, Cacna1s, Calm2, Chrm2, cysteinyl leukotriene receptor 1 (Cysltr1), Ednrb, epidermal growth factor receptor (Egfr), v-erb-b2 erythroblastic leukemia viral oncogene homolog 2 (Erbb2), F2r, Grm5, inositol 1,4,5-triphosphate receptor 3 (Itpr3), myosin light chain kinases (Mylk3, Mylk4), Nos3, Oxtr, P2rx3, phosphodiesterase 1C (Pde1c), Pdgfra, phosphorylase kinase gamma 1 (Phkg1), Plcd3, phospholamban (Pln), Ppp3cb, Ptgfr, PTK2 protein tyrosine kinase 2 beta (Ptk2b), Slc8a1, Slc8a3, thromboxane A2 receptor (Tbxa2r) and troponin C cardiac/slow skeletal (Tnnc1).
