Figure 9

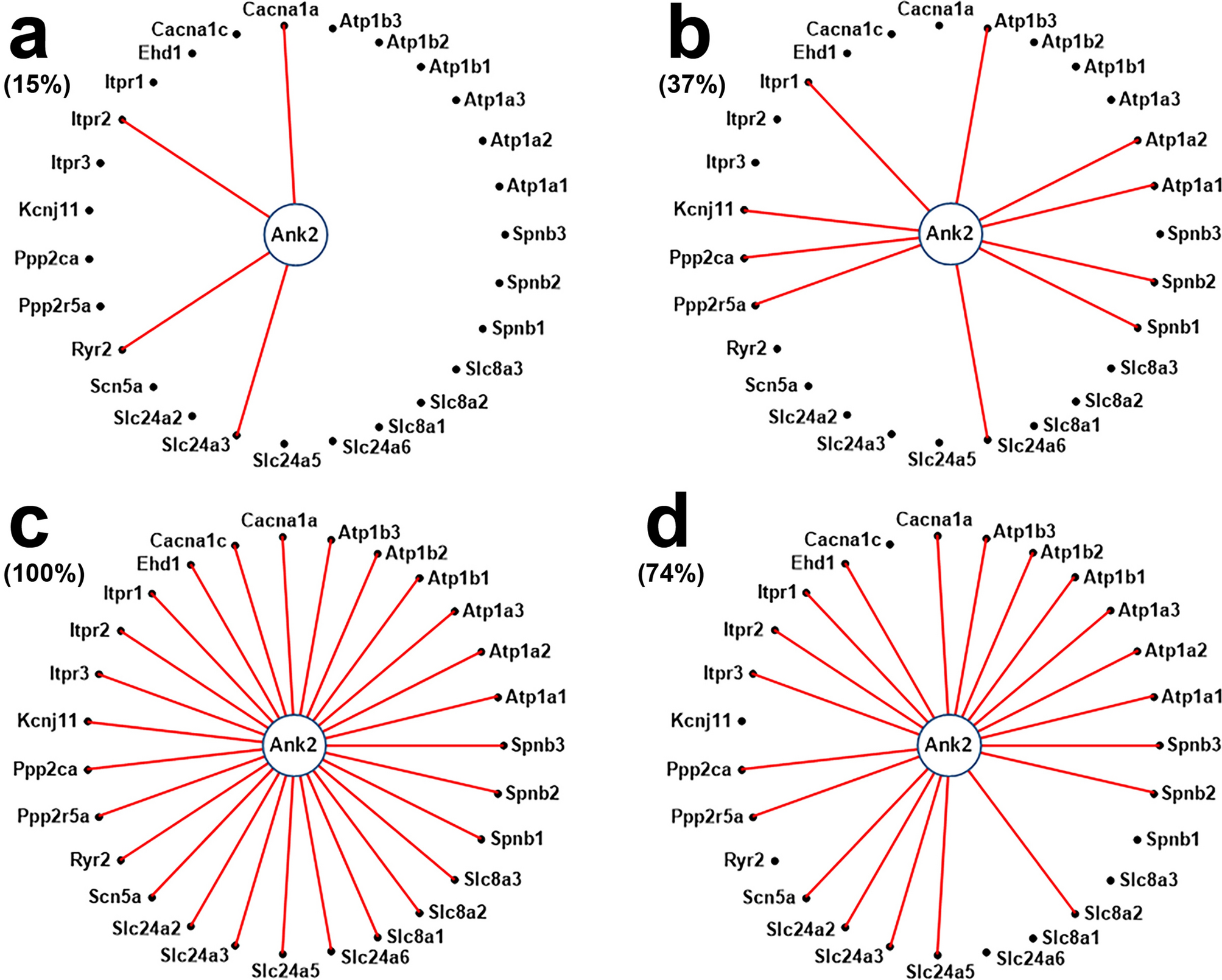

Expression coordination of Ank2 with its known binding partners in: (a) left atrium, (b) right atrium, (c) left ventricle, (d) right ventricle. Genes: Atp1a1/2/3 (ATPase, Na+/K+ transporting, alpha 1/2/3 polypeptide), Atp1b1/2/3 (ATPase, Na+/K+ transporting, beta 1/2/3 polypeptide), Cacna1a (calcium channel, voltage-dependent, P/Q type, alpha 1A subunit), Cacna1c (calcium channel, voltage-dependent, L type, alpha 1C subunit), Ehd1 (EH-domain containing 1), Itpr1/2/3 (inositol 1,4,5-trisphosphate receptor 1/2/3), Kcnj11 (potassium inwardly rectifying channel, subfamily J, member 11), Ppp2ca (protein phosphatase 2 (formerly 2A), catalytic subunit, alpha isoform), (protein phosphatase 2, regulatory subunit B (B56), alpha isoform), Ryr2 (ryanodine receptor 2, cardiac), Scn5a (sodium channel, voltage-gated, type V, alpha), Slc24a2/3/5/6 (solute carrier family 24 (sodium/potassium/ calcium exchanger), member 2/3/5/6), Slc8a1/2/3 (solute carrier family 8 (sodium/calcium exchanger), member 1/2/3), Spnb1/2/3 (spectrin beta 1/2/3).
