Figure 5
From: The role of oxidised self-lipids and alveolar macrophage CD1b expression in COPD

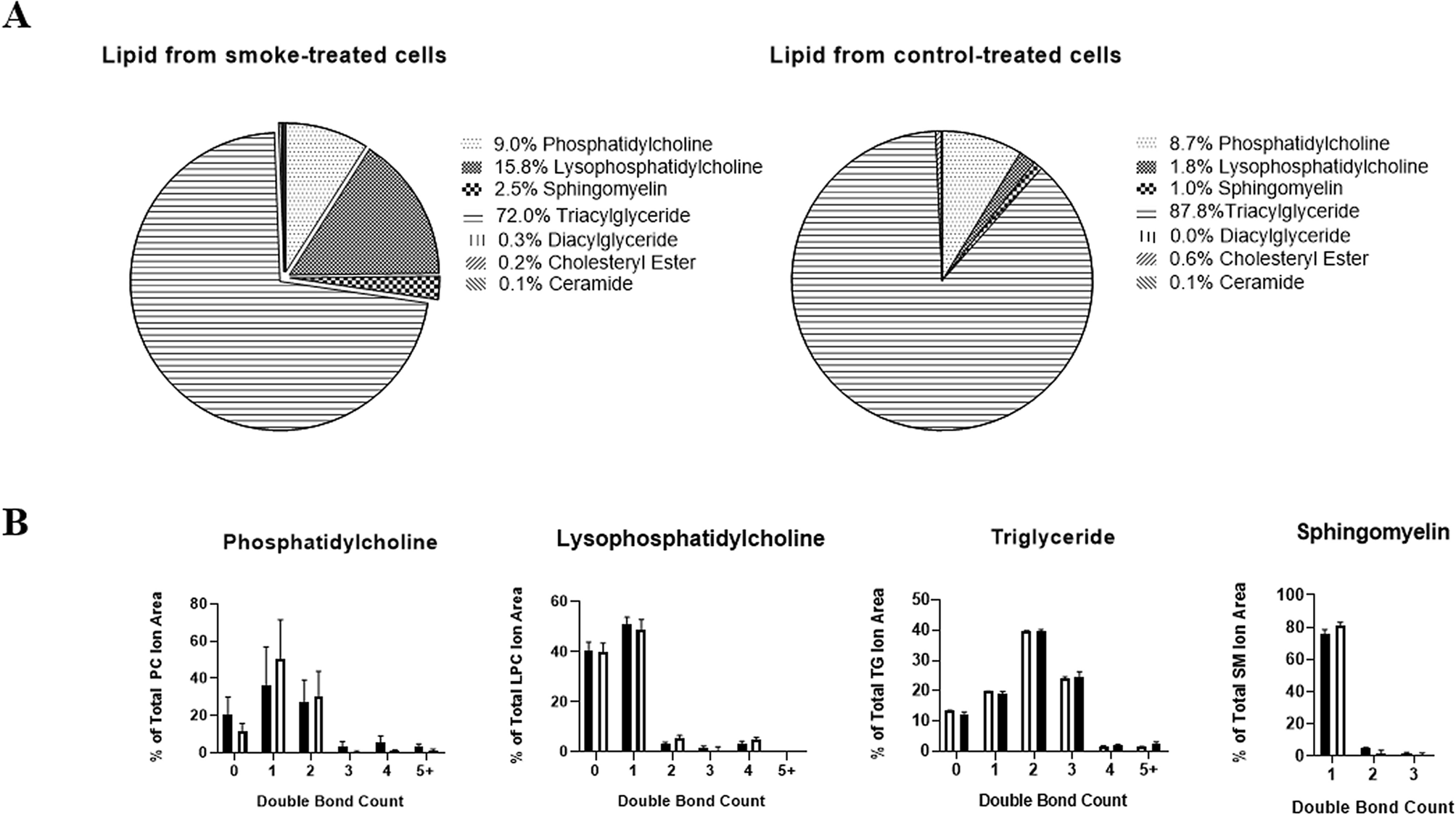

Lipid distribution by class and double bonds within major classes in 16HBE total cellular lipid. (A) Distribution of lipids from each class was obtained by finding the total ion area of each class from each sample, and the class signal as a proportion of the total ion area were obtained. Data represents an average of each treatment group to obtain a qualitative view of the class-based distribution between samples. N = 5 samples per treatment group (B) The proportion of lipids with a given number of double bonds across both acyl chains was obtained by finding the average percentage distribution of each double bond count in each sample. Data are presented as average per treatment group + SD. N = 5 samples per treatment group. Total lipid extracted from White = control or black = smoke exposed 16HBE cells.
