From: Sarcoplasmic reticular Ca2+-ATPase inhibition paradoxically upregulates murine skeletal muscle Nav1.4 function

Figure 4

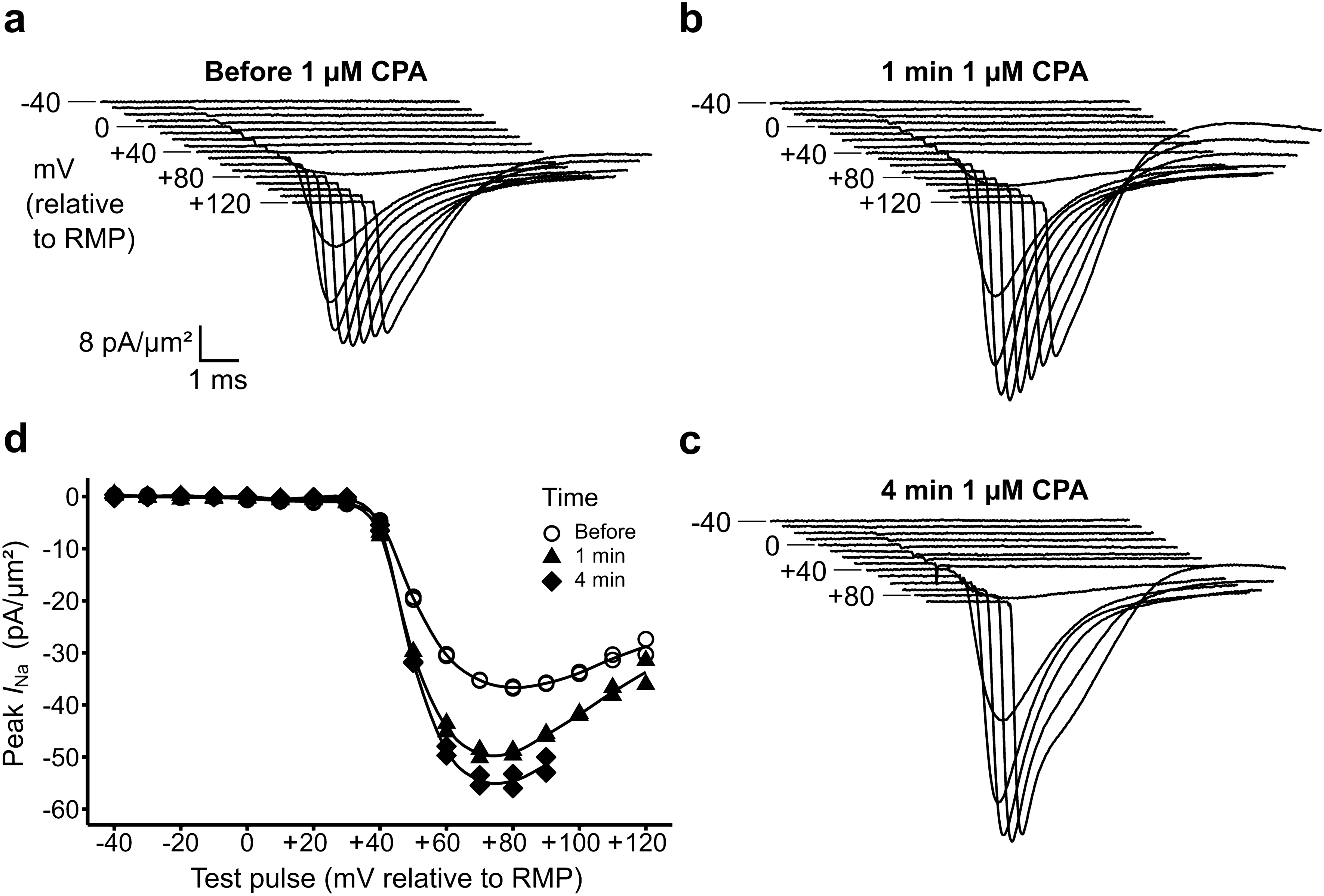

Effects of 1 µM CPA on currents and related I–V relationships. (a–c) Sets of current traces obtained from a patch (a) before, (b) 1 min and (c) 4 min after solution change to K–H solution containing 1 µM CPA. (d) Peak currents plotted against voltage excursion to give I–V relationships here illustrating a ~ 38% alteration in maximum peak current following the solution change.
