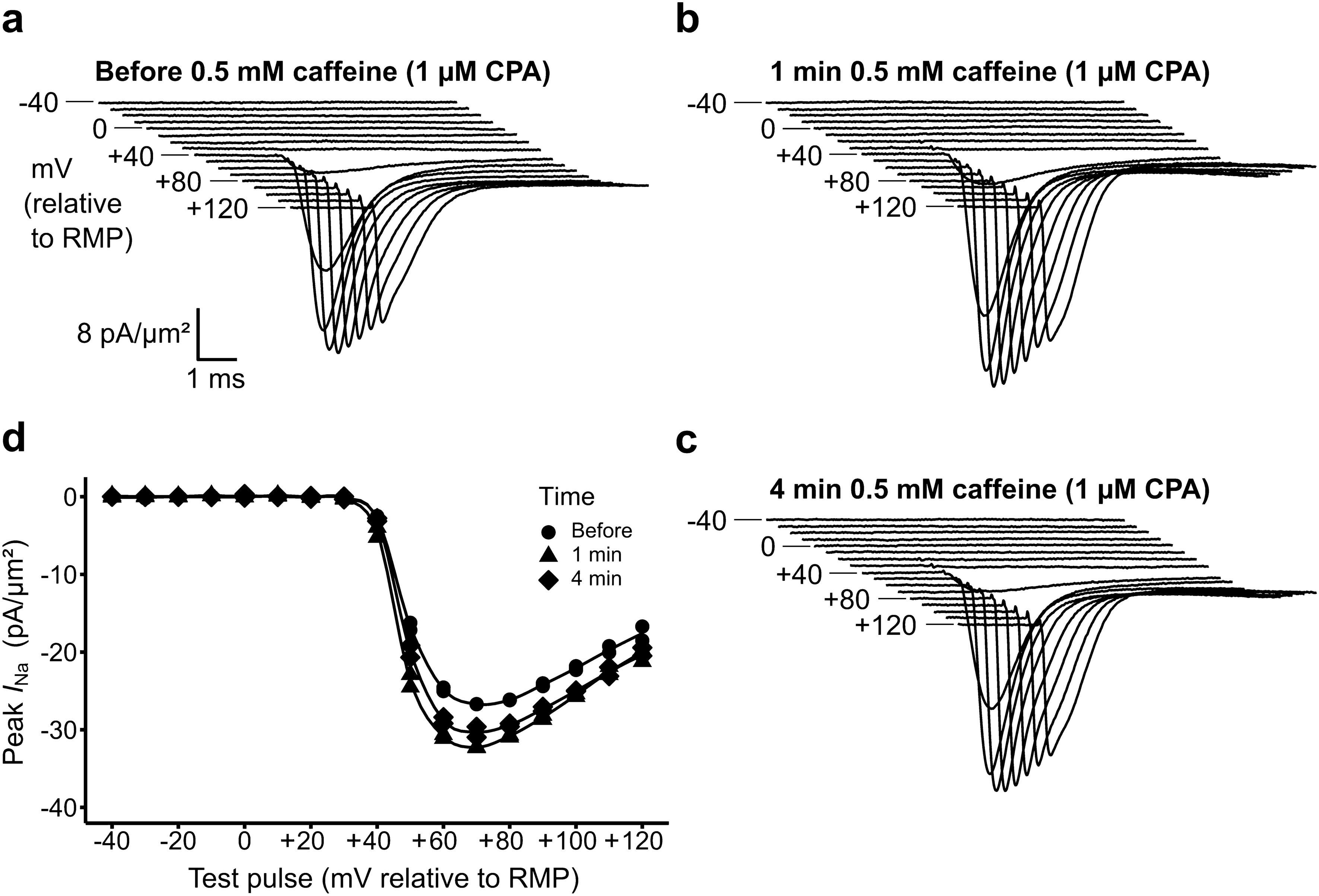

Effects of 0.5 mM caffeine challenge in the presence of 1 µM CPA. (a–c) Families of current traces from a patch (a) before, (b) 1 min and (c) 4 min after a preparation first pre-incubated with 1 µM CPA for 13 min underwent a solution change to one containing 0.5 mM caffeine in addition to 1 µM CPA. (d) Peak currents plotted against voltage excursion to give I–V relationships.
