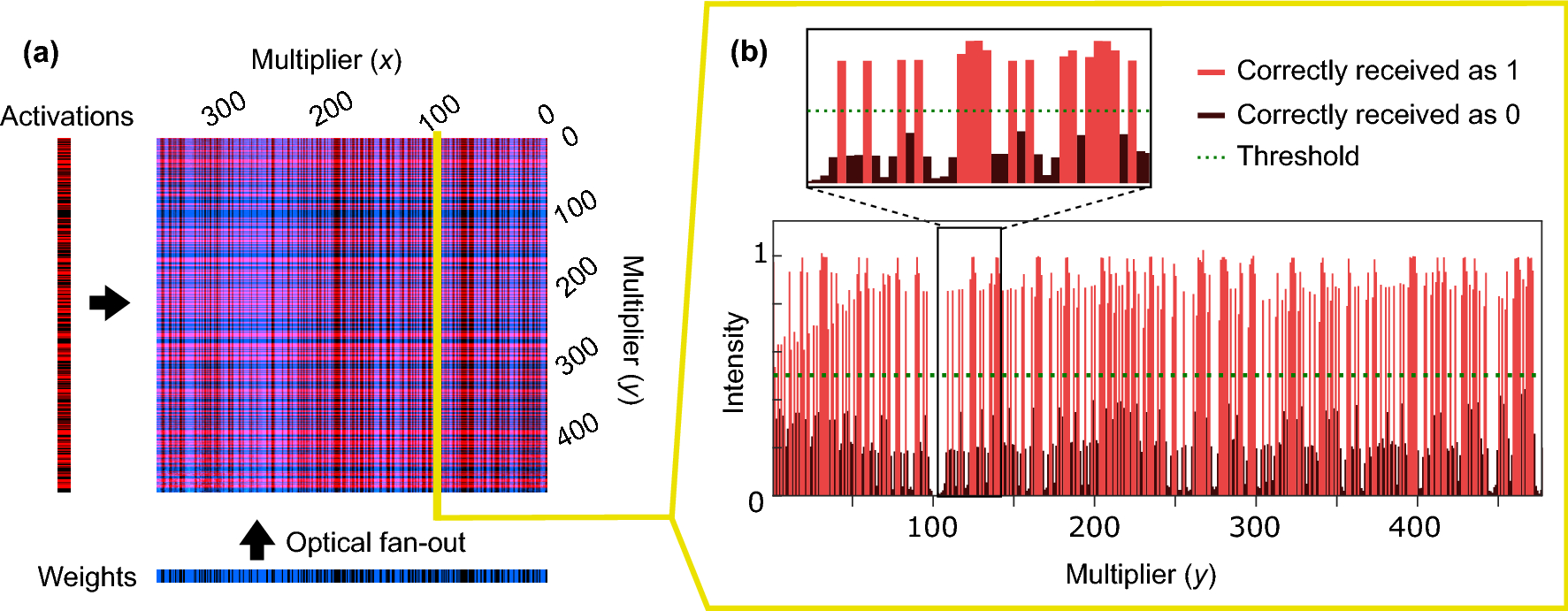

Figure 4
From: Freely scalable and reconfigurable optical hardware for deep learning
Background-subtracted and normalized receiver output from free-space digital optical neural network experiment with random vectors of ‘1’s and ‘0’s displayed on DMDs. (a) Full 2D image. (b) One column: pixels received as ‘1’ in red and ‘0’ in black.
