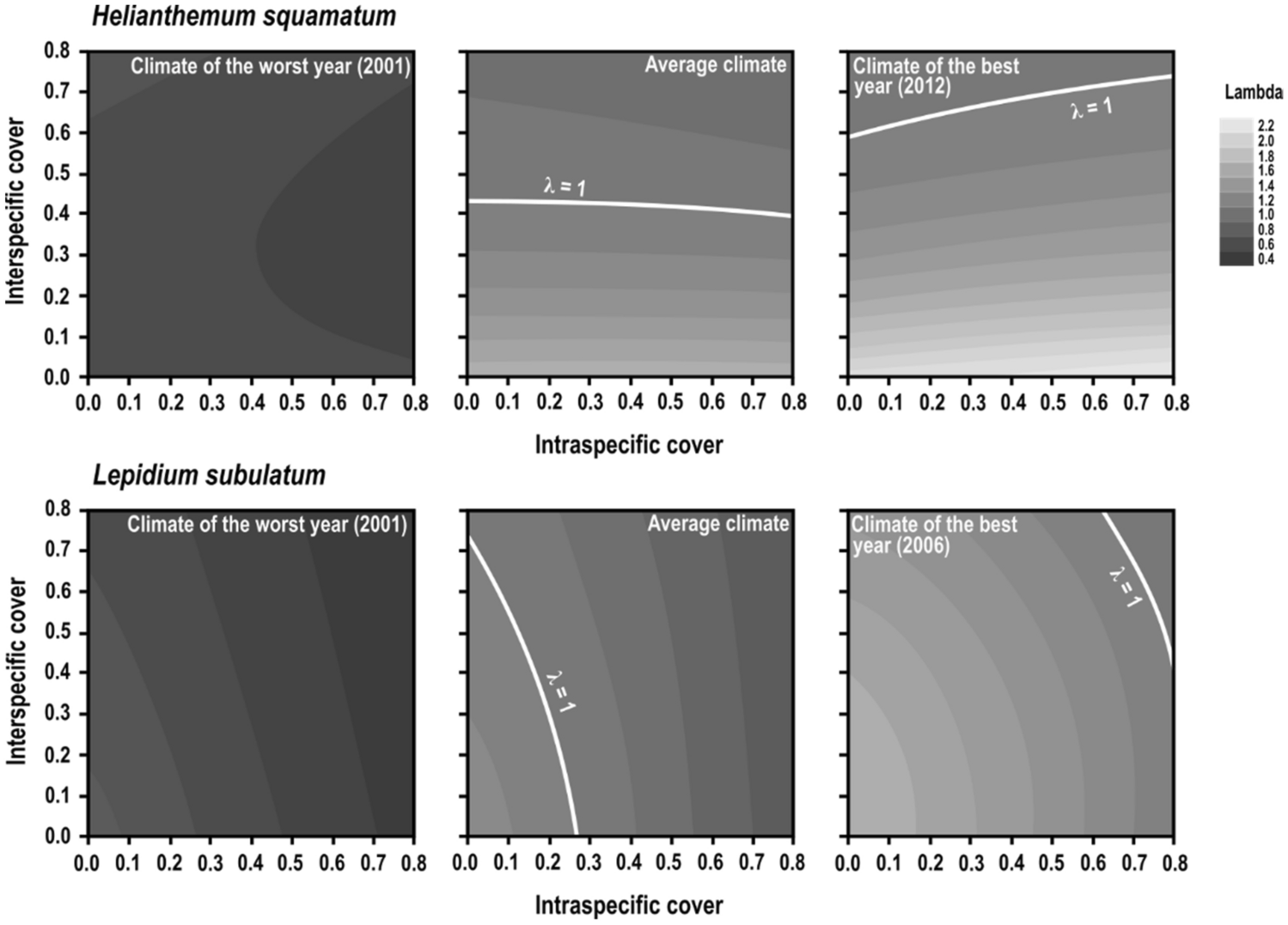

Figure 3

Variation in population growth rate (lambda) depending on intra- and interspecific covers for H. squamatum and L. subulatum. Lambdas were obtained by running the Integral Projection Models built for each species separately, using contrasting climatic conditions and adjusting intra and interspecific covers in each iteration to cover all possible combinations. White lines indicate the limit between negative (darker) and positive (lighter) population growth rates (i.e., lambda = 1). Models were adjusted for block A; results for block B were similar (see Supplementary Fig. S2). Note that covers of 80% of the two species are unrealistic.
