From: The safety and efficacy of BCG encapsulated alginate particle (BEAP) against M.tb H37Rv infection in Macaca mulatta : A pilot study

Figure 2

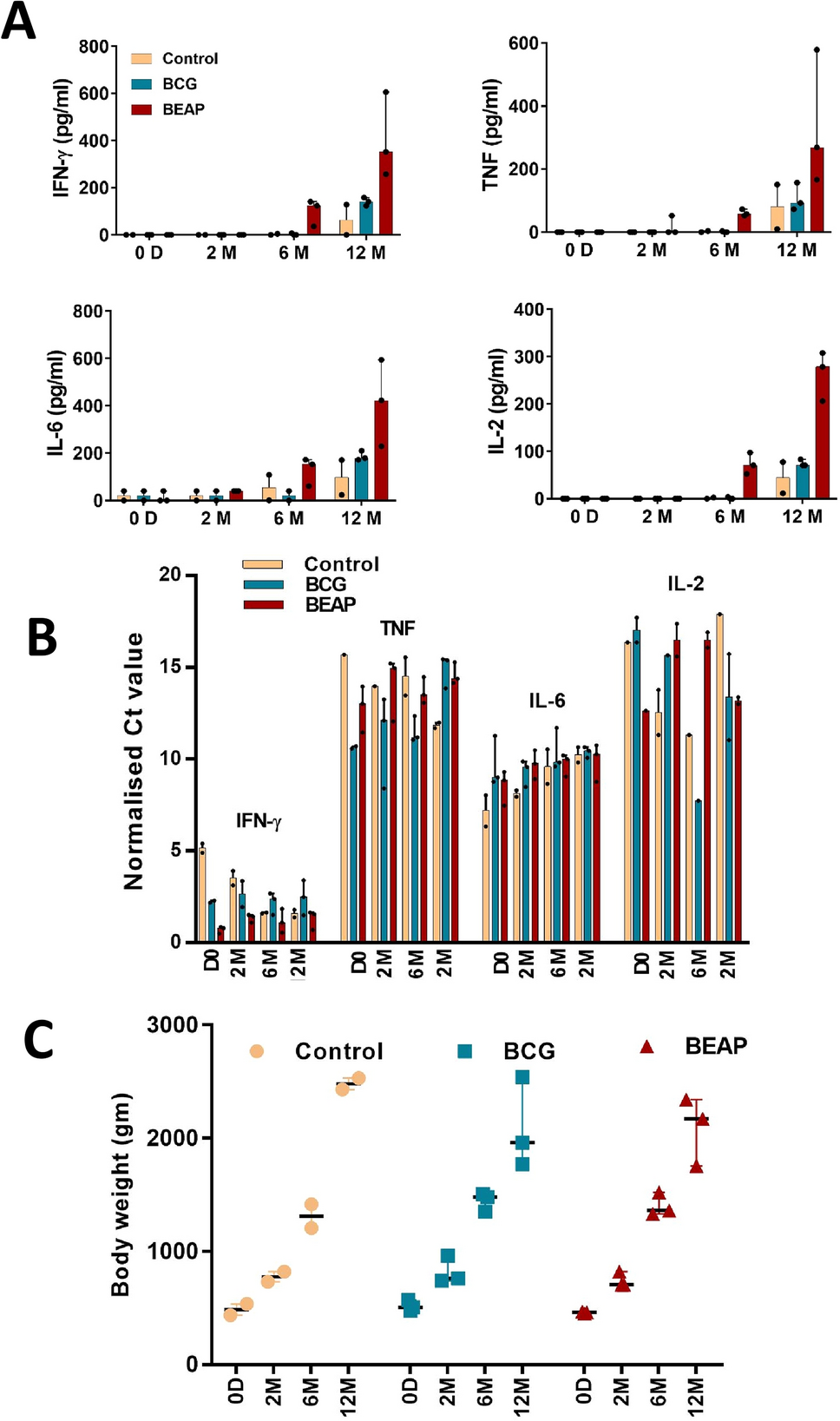

The non-toxic response of BCG/BEAP. (A) Cytokines levels, estimated by the cytometric bead array (BD Biosciences), in serum post immunization. (B) The m-RNA levels of the cytokine genes after normalization with the housekeeping gene GAPDH. (C) The progressive growth in terms of body weight of immunized and control animals up to 12 months. Dots indicate data points and bars are median with 95% confidence interval. Graphs were plotted using GraphPad Prism version-7 program (https://www.graphpad.com/).
