Figure 6
From: Traffic signal optimization on a square lattice with quantum annealing

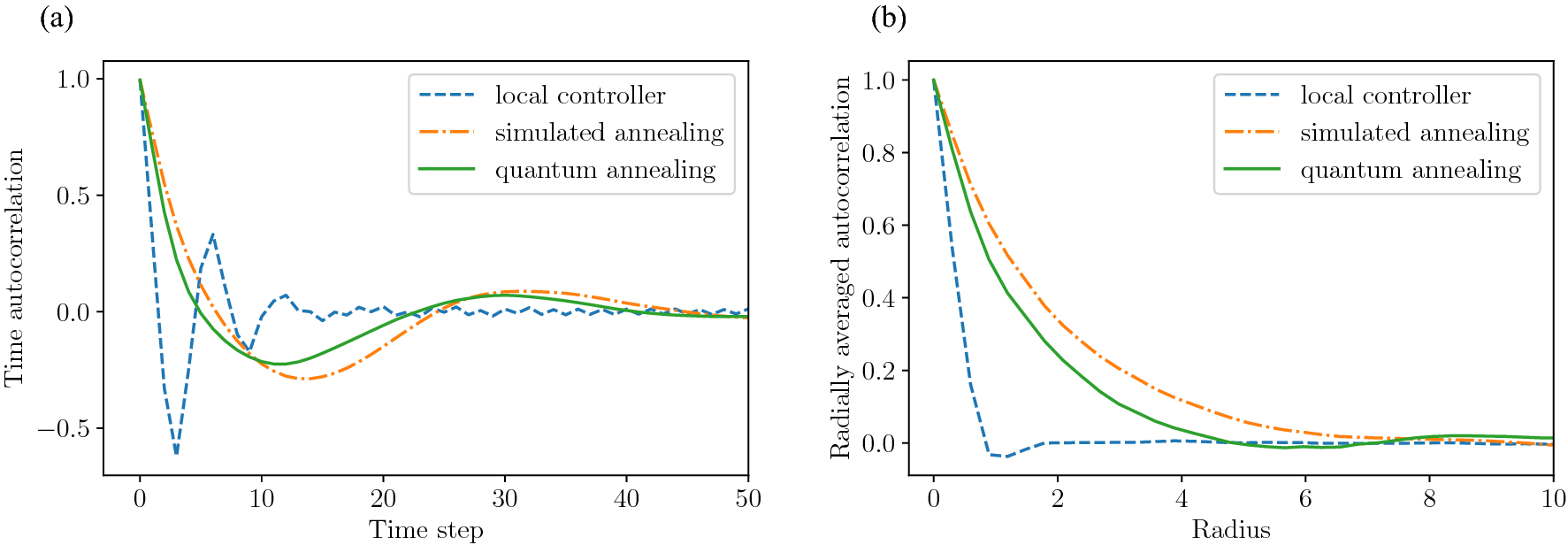

Time and spatial autocorrelation functions for different control methods. (a) Time autocorrelation function and (b) Radially averaged spatial autocorrelation function. Parameters \(\alpha , \eta\), and L are fixed as \(\alpha =0.8, \eta =1.0\), and \(L=50\), respectively.
