Figure 9
From: Traffic signal optimization on a square lattice with quantum annealing

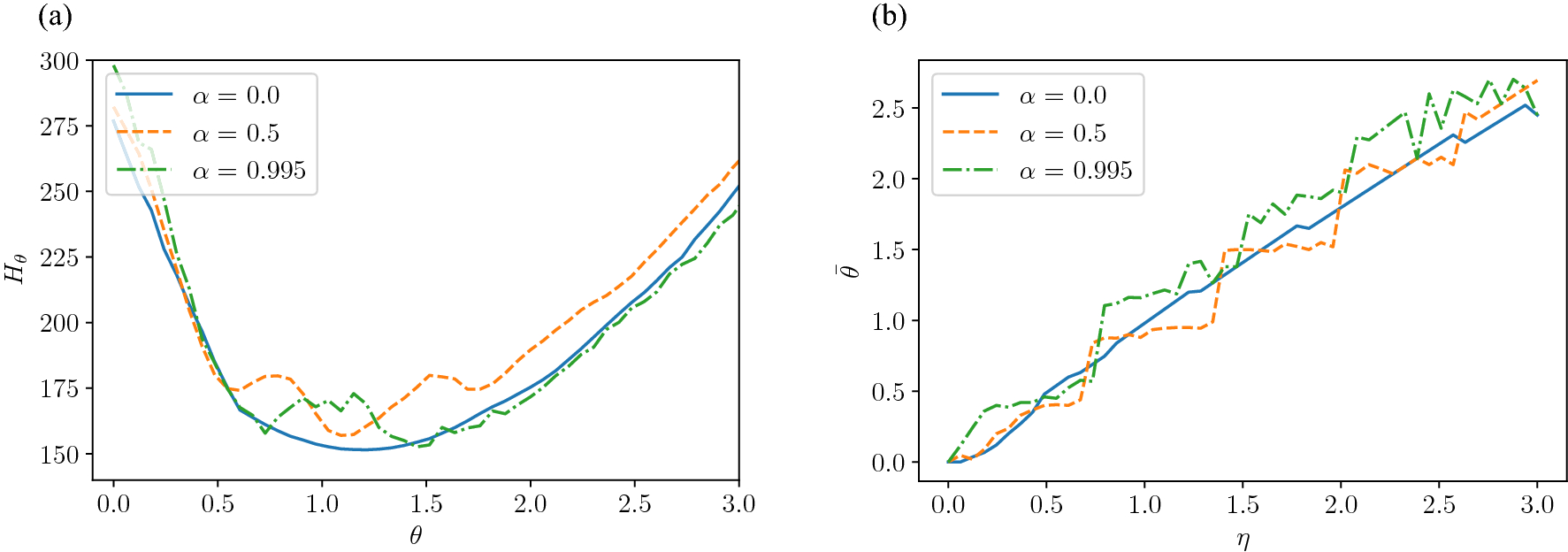

Correspondence between \(\eta\) and \(\theta\). (a) Time average of the objective function \({\bar{H}}\) versus \(\theta\), when the value of \(\eta\) is fixed as \(\eta =1.0\). The cases with \(\alpha \in \{0.0,0.5,0.995\}\) are shown. (b) \({\hat{\theta }}\) versus \(\eta\) for \(\alpha \in \{0.0,0.5,0.995\}\).
