Figure 3

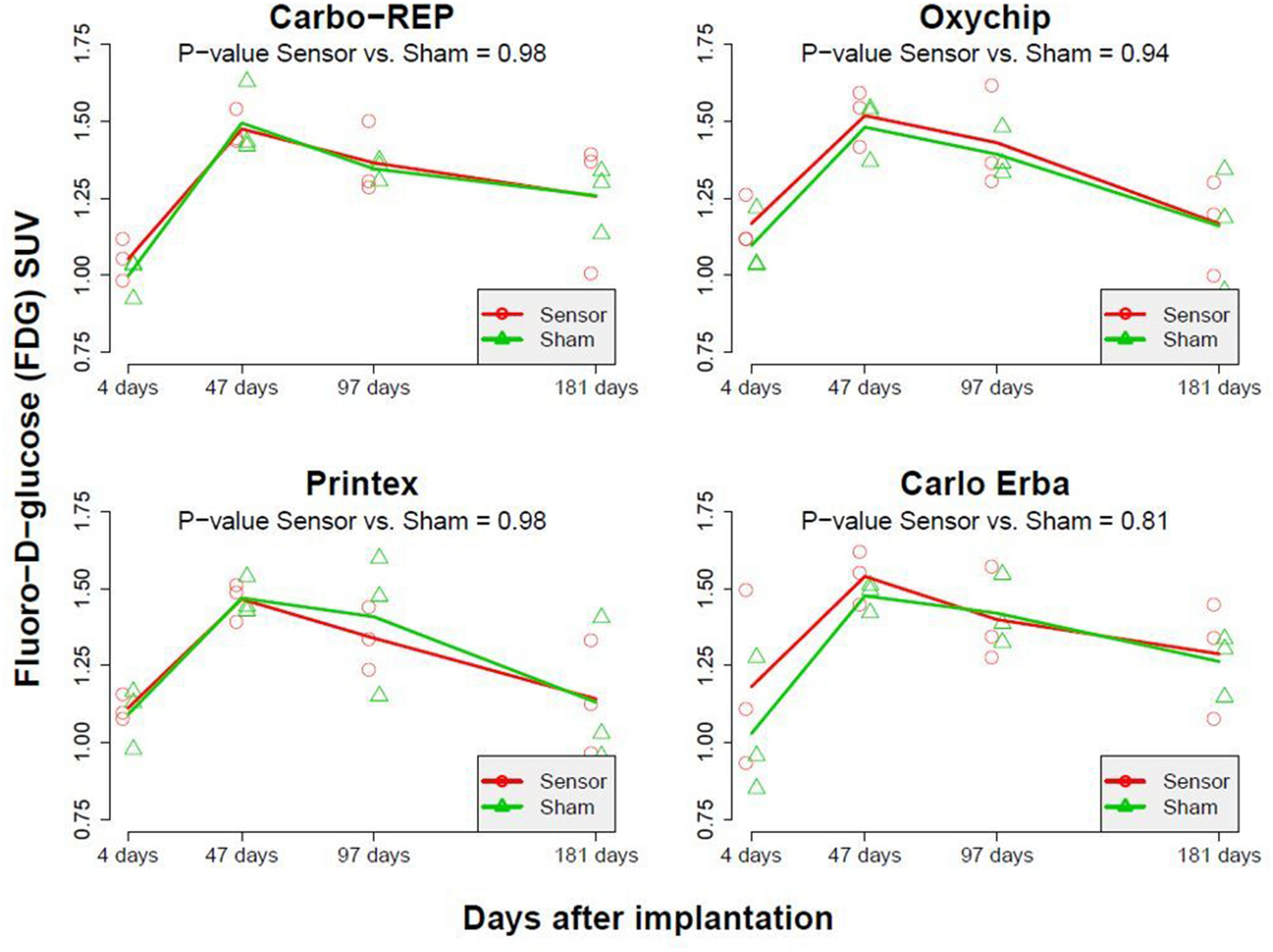

FDG SUV mean values for sham and sensor in rat muscles as measured by PET at 4, 47, 97 and 181 days after sensor administration. For all four types of oxygen sensors no significant difference in FDG SUV mean was found between the sensor-implanted muscles and sham muscles across all time points.
