Figure 2
From: Lag synchronization of coupled time-delayed FitzHugh–Nagumo neural networks via feedback control

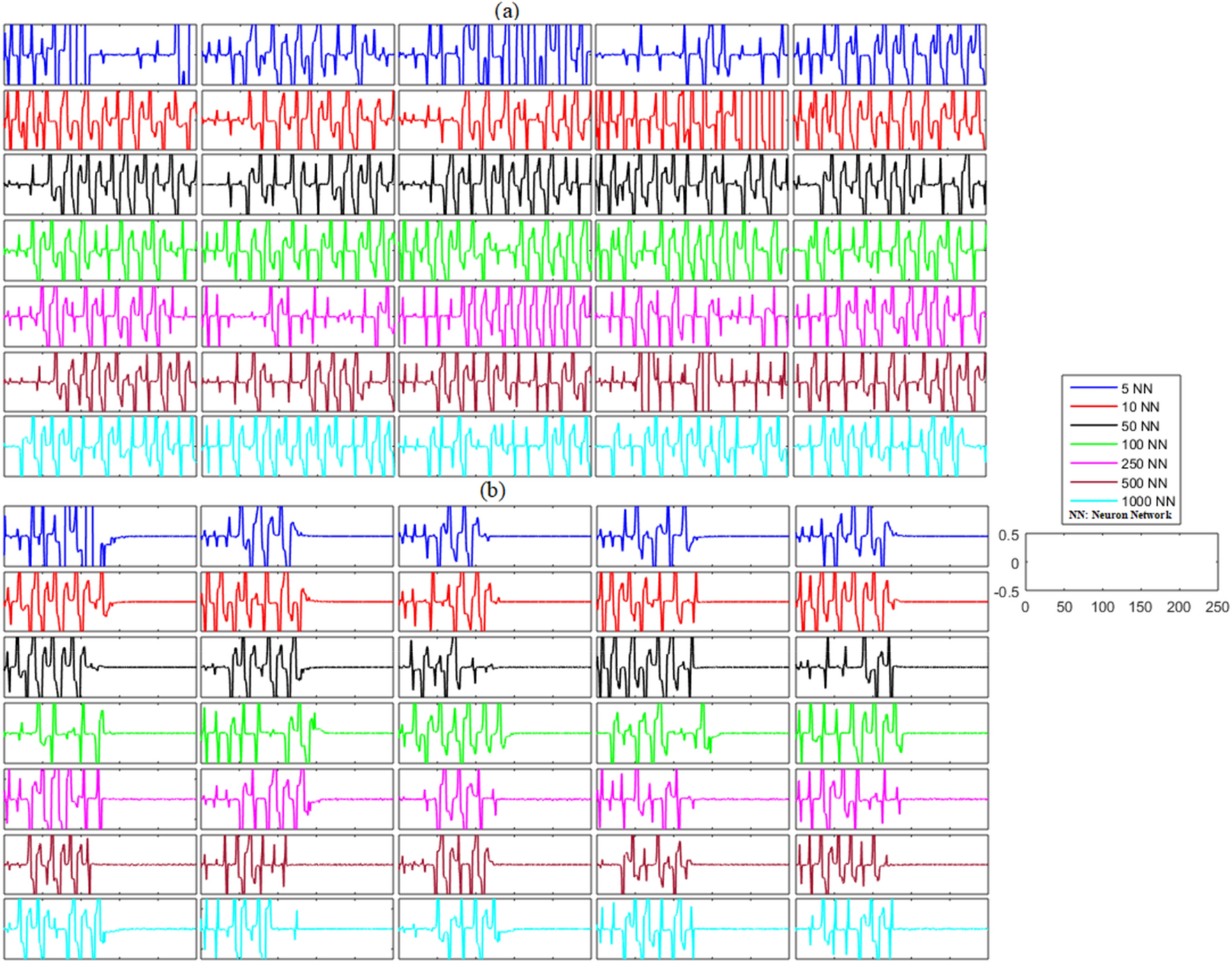

(a) Without control synchronization dynamics of the membrane potential states (x-states) of different time-delayed unidirectional FHN networks without noise. (b) Controlled synchronized error dynamics of the membrane potential states (x-state) of different time-delayed unidirectional FHN networks without noise.
