Figure 4
From: Plasma microRNA signature associated with retinopathy in patients with type 2 diabetes

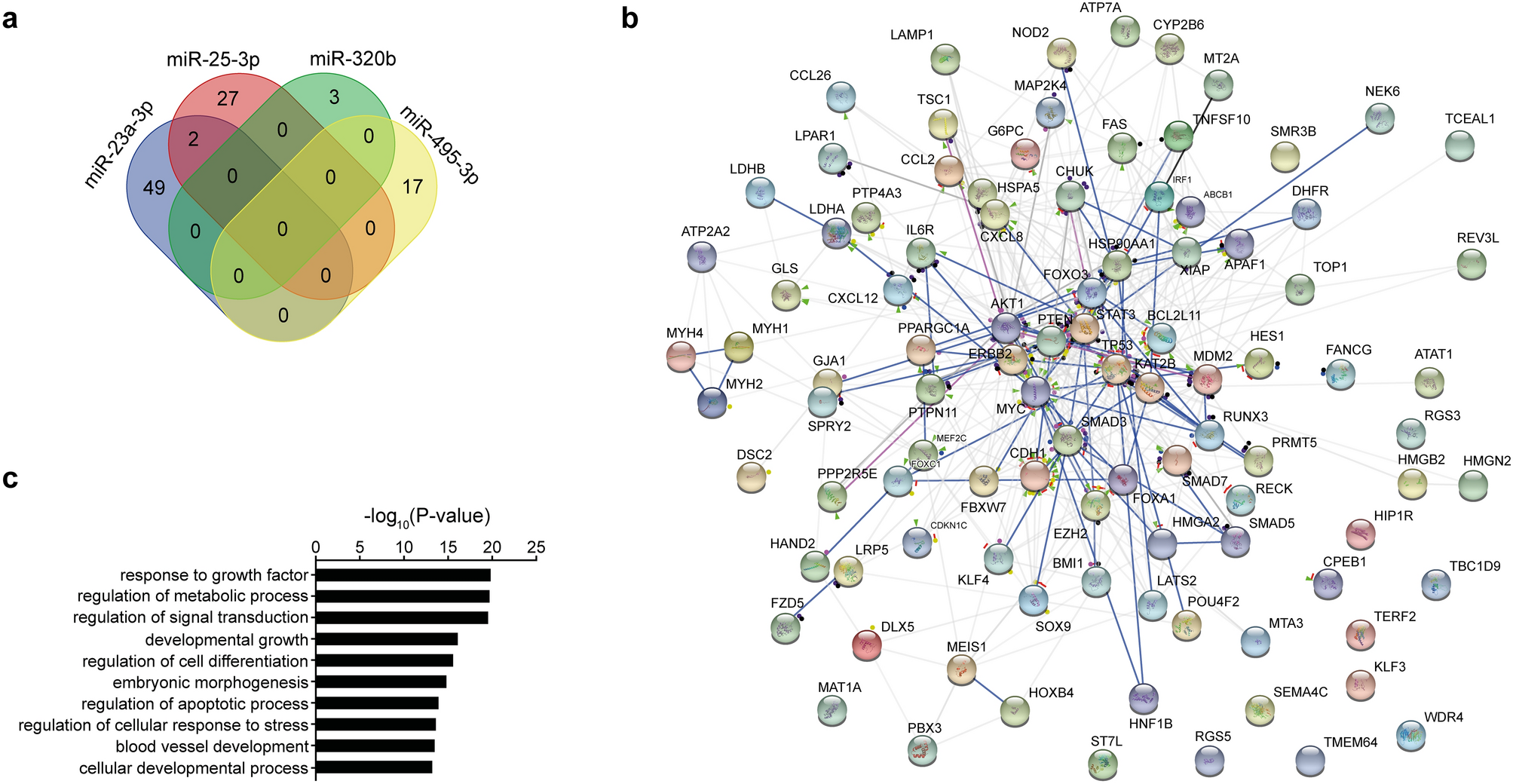

Biological pathway network. (a) Venn’s diagram for the overlap of target mRNA for the dysregulated miRNAs. (b) Network analysis of biochemical interaction among the validated targets of the dysregulated miRNAs as enlisted in the STRING database. (c) Gene ontology analysis for enrichment in biological processes pathways of the validated targets of the dysregulated miRNAs.
