Figure 6
From: Involvement of bilateral insula in brand extension evaluation: an fMRI study

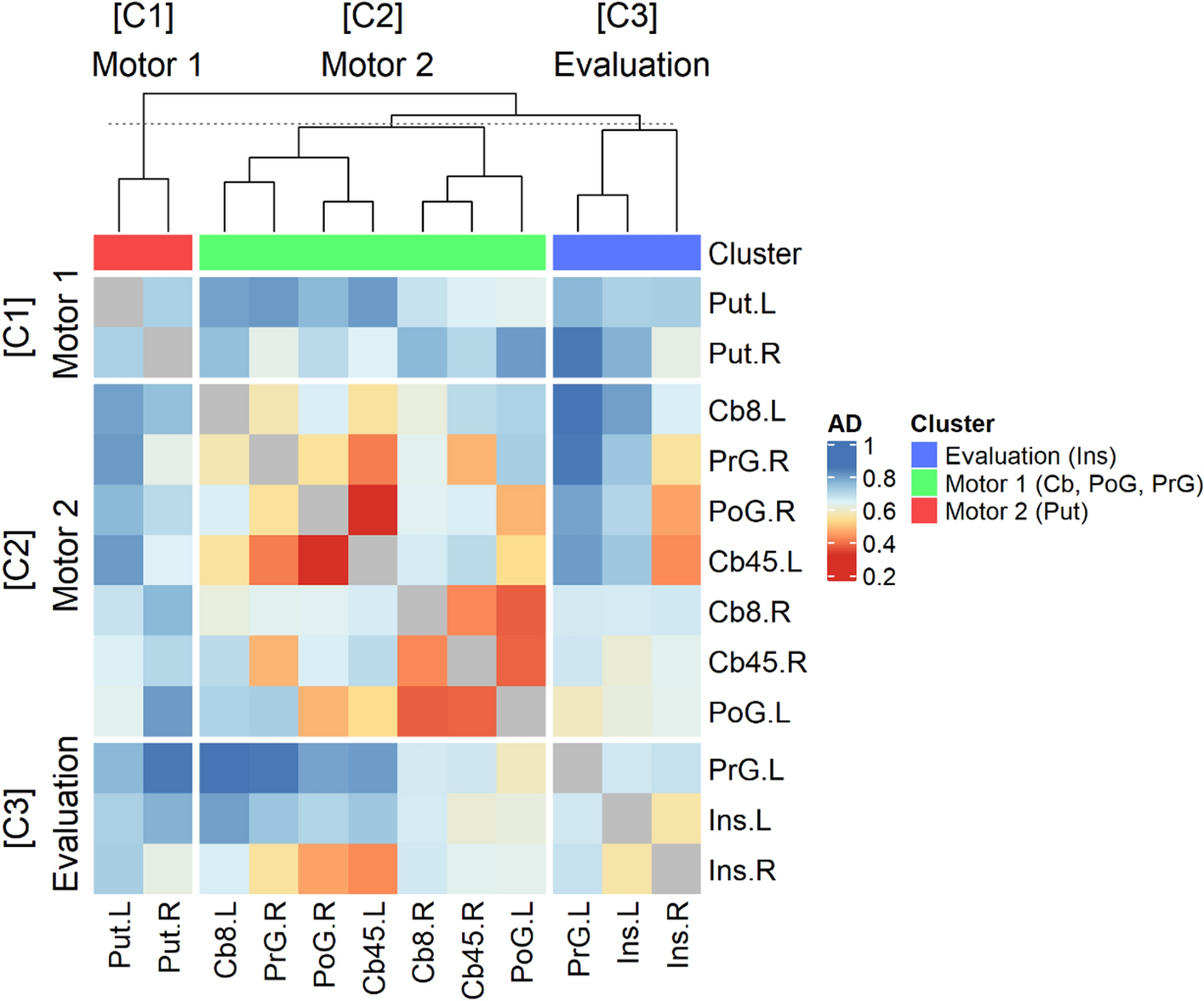

A heatmap with the result of hierarchical clustering. The order of both row and column was determined by hierarchical clustering algorithm as follows: (1) left putamen (Put.L), (2) right putamen (Put.R), (3) left cerebellum 8 (Cb8.L), (4) left cerebellum 4/5 (Cb45.L), (5) right cerebellum 8 (Cb8.R), (6) right cerebellum 4/5 (Cb45.R), (7) right precentral gyrus (PrG.R), (8) left postcentral gyrus (PoG.L), (9) right postcentral gyrus (PoG.R), (10) left precentral gyrus (PrG.L), (11) left insula cortex (Ins.L), and (12) right insula cortex (Ins.R). Each cell indicates Pearson correlation distance between brain regions.
