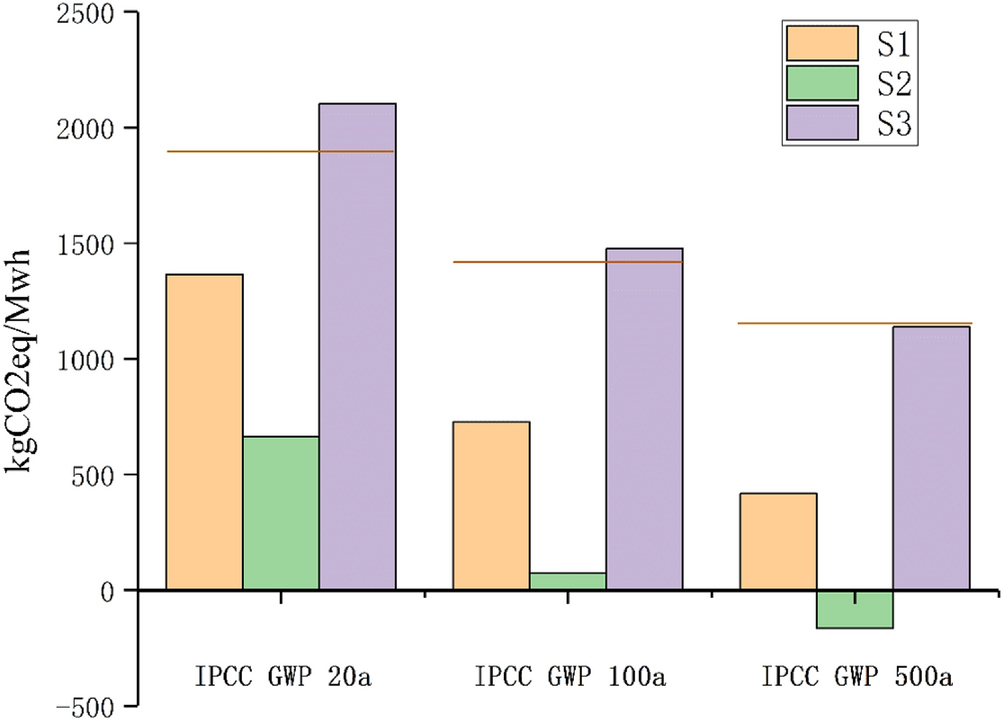

Figure 3
From: An integrated life cycle and water footprint assessment of nonfood crops based bioenergy production
GHG impacts in various time horizon of each system based on IPCC methods in comparison with market electricity under the same functional unit conditions.
