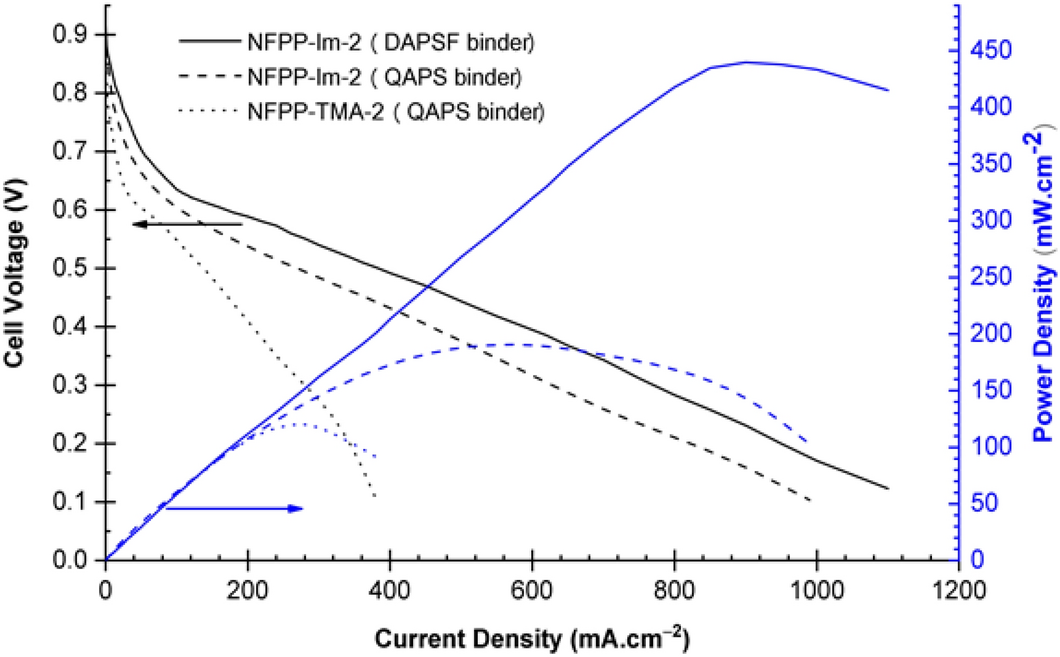

Figure 10
Polarization curve and power density of a single fuel cell with MEAs prepared using of NFPP-Im-2 membranes with different binders in comparison with NFPP-TMA-2 membrane. Conditions are: T = 80 °C, RH = 90% for H2 and O2 having flow rates of 100 and 200 mL min−1, respectively.
