Figure 2

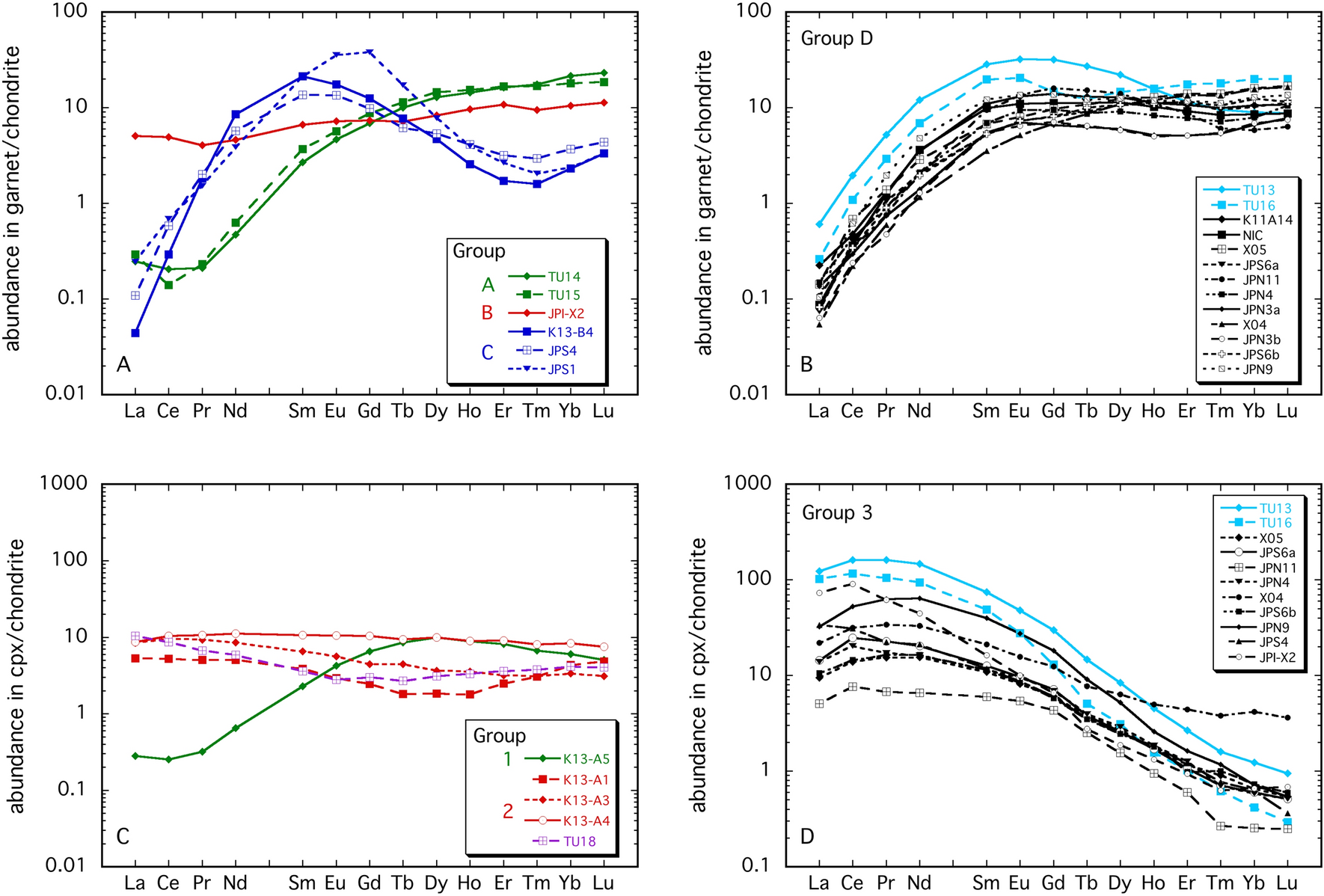

Chondrite-normalized REE patterns for garnet (A,B) and clinopyroxene (C,D) illustrating the different signatures as described in the text. Normalization is after McDonough and Sun27. The samples in blue in B–D are from Pelly Bay, the rest being from Somerset Island.
