From: Development of titanium 3D mesh interlayer for enhancing the electrochemical performance of zinc–bromine flow battery

Figure 2

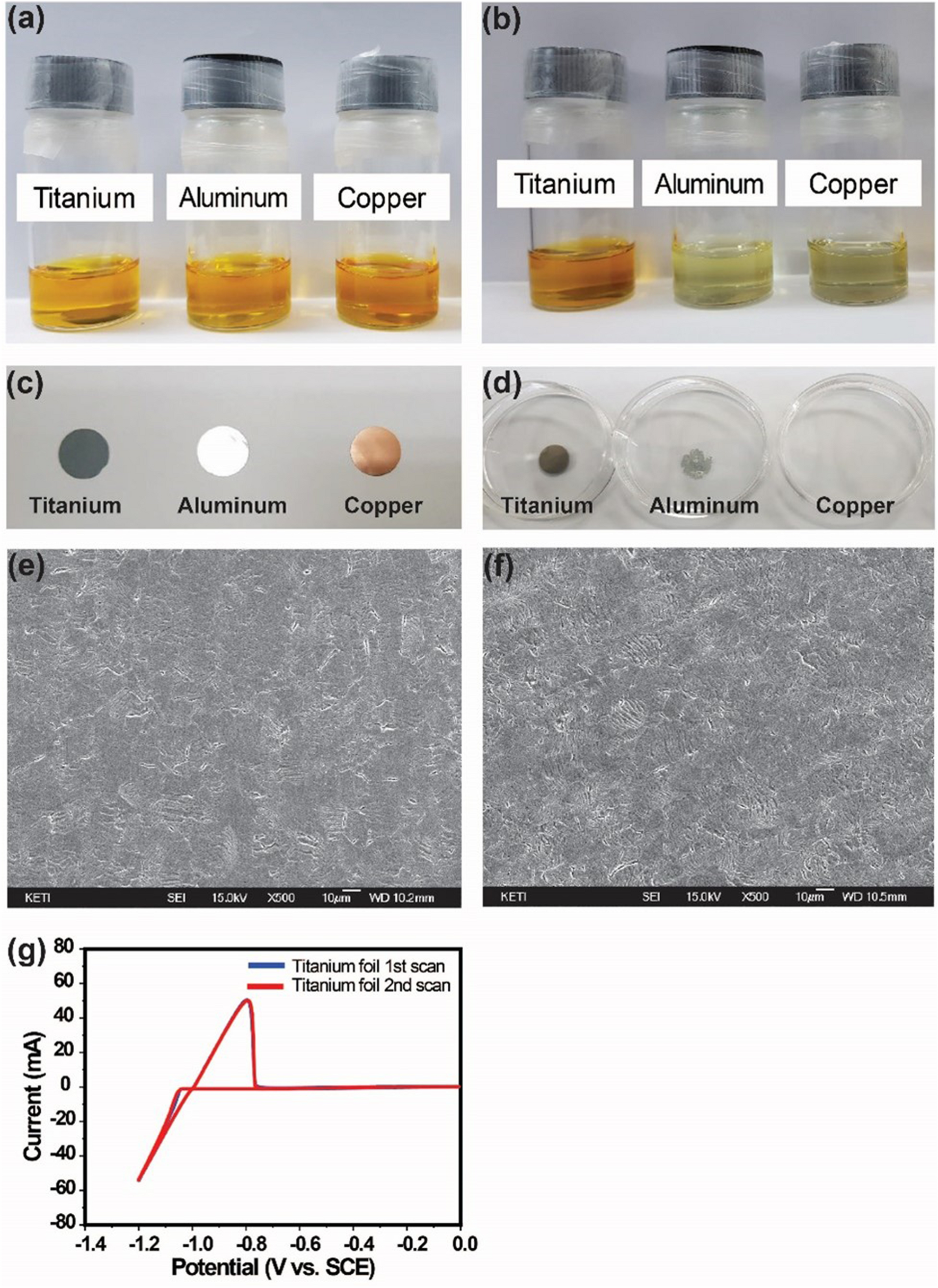

Photographs of ZBB electrolyte with different metal foils (a) before storage and (b) after 80 h storage. Photographs of metal foils (c) before electrolyte storage and (d) after 80 h electrolyte storage. SEM images of (e) pristine titanium foil and (f) stored titanium foil in the electrolyte. (g) Cyclic voltammogram (CV) obtained from titanium foil electrode with 2.25 M ZnBr2 solution.
