Figure 5
From: Theory and experimental verification of configurable computing with stochastic memristors

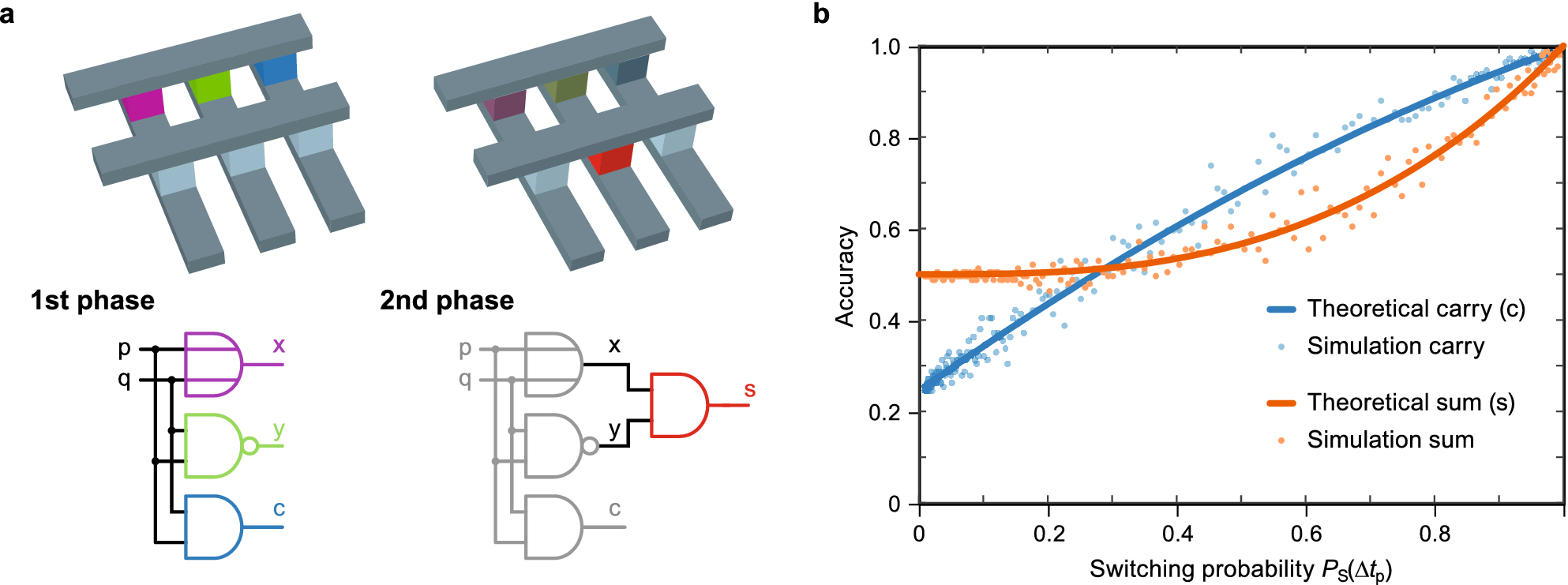

(a) The process of the arithmetic operation within the crossbar with the two phases to produce the sum and carry bits. (b) The theoretical and simulated outputs for the adder circuit.
